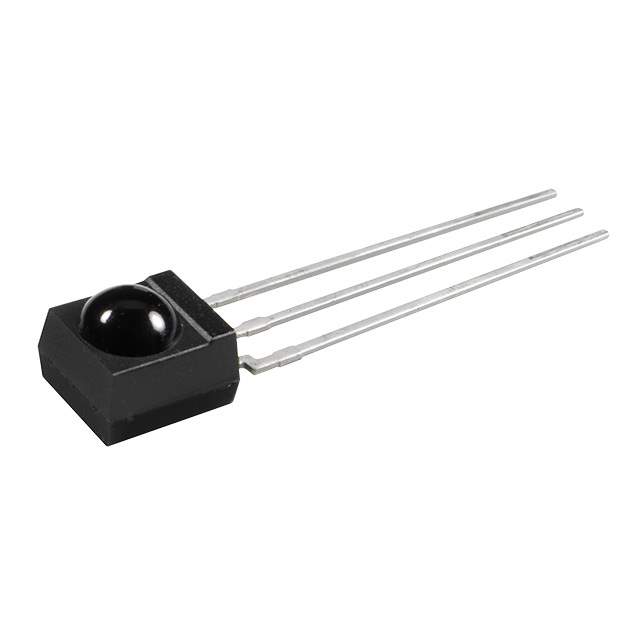

TSOP14430 Real Image
Same model may have multiple batches, images only for reference.

TSOP14430

Part No TSOP14430
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description SENSOR REMOTE REC 30.0KHZ 30M / Remote Receiver Sensor 30.0kHz 30m Through Hole
Datasheet
TSOP14430 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay Semiconductor Opto Division
Series TSOP14
Package Bulk
Sensing Distance 30m
B.P.F. Center Frequency 30.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 700 µA
Orientation Side View
Mounting Type Through Hole
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSOP14430
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Standard Package 2,160
Win Source Part Number 1085212-TSOP14430
Ultra Librarian 3D Model Ultra Librarian TSOP14430 CAD Model

Description

The Vishay TSOP14430 is a high-quality remote receiver photo detector that is widely used in various applications.

  • Sensing Distance: 30m
  • B.P.F. Center Frequency: 30.0kHz
  • Operating Temperature Range: -25°C to 85°C
  • Voltage Supply Range: 2.5V to 5.5V
  • Current Supply: 700 µA
  • Package: Through-hole
  • Supply: Bulk
