Same model may have multiple batches, images only for reference.

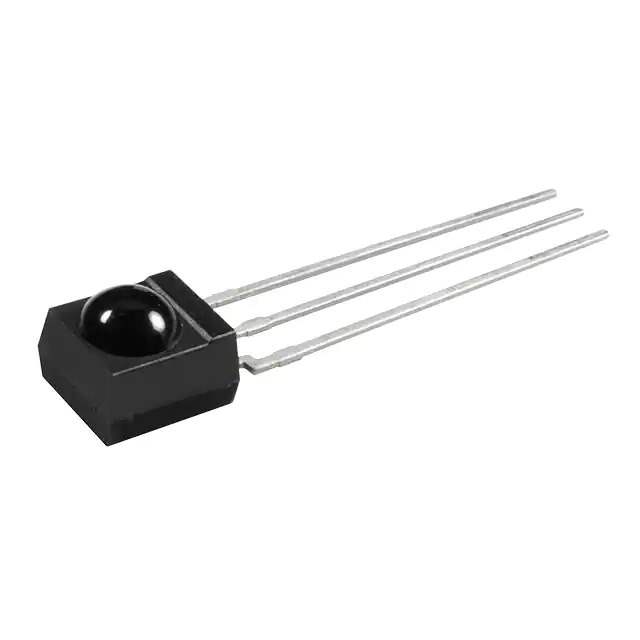

TSOP18238 Real Image
Same model may have multiple batches, images only for reference.

TSOP18238

Part No TSOP18238
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description SENSOR REMOTE REC 38.0KHZ 24M / Remote Receiver Sensor 38.0kHz 24m Through Hole
Datasheet
TSOP18238 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay
Series TSOP18
Package Bulk
Product Status Active
Sensing Distance 24m
B.P.F. Center Frequency 38.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 700 µA
Orientation Side View
Mounting Type Through Hole
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSOP18238
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 901448-TSOP18238
Ultra Librarian 3D Model Ultra Librarian TSOP18238 CAD Model

Description

The 901448-TSOP18238 is a remote receiver photo detector from Vishay's TSOP18 series.

  • Category: Optical sensors, photo detectors
  • Series: TSOP18
  • Supply Voltage Range: 2.5V to 5.5V
  • Supply Current: 700μA
  • Sensing Distance: 24m
  • Center Frequency: 38.0kHz
  • Mounting: Through hole
  • Operating Temperature: -25°C to 85°C
  • Package: Bulk
  • Standard Package: 1,500 pcs
  • Status: Active
