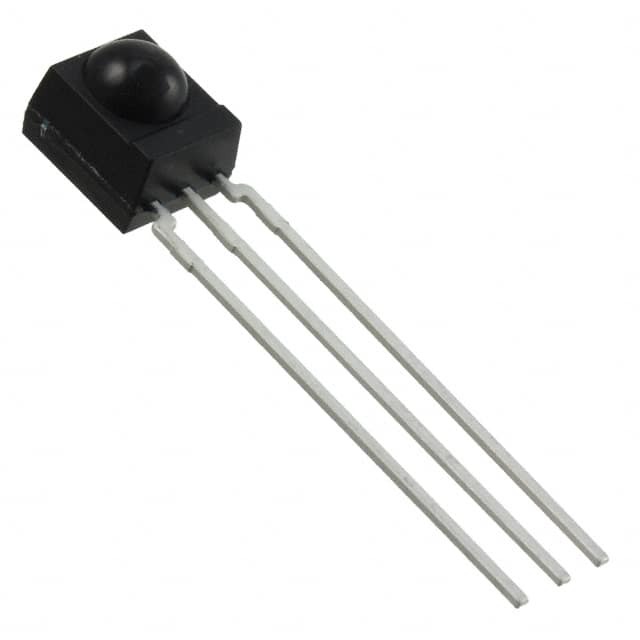

Same model may have multiple batches, images only for reference.
TSOP2140
Same model may have multiple batches, images only for reference.

TSOP2140

Part No TSOP2140
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description SENSOR REMOTE REC 40.0KHZ 45M / Remote Receiver Sensor 40.0kHz 45m Through Hole
Datasheet
TSOP2140 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay
Package Tube
Product Status Active
Sensing Distance 45m
B.P.F. Center Frequency 40.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 900 µA
Orientation Side View
Mounting Type Through Hole
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSOP2140
Standard Package 90 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 901449-TSOP2140
Ultra Librarian 3D Model Ultra Librarian TSOP2140 CAD Model

Description

The 901449-TSOP2140 is an optical sensor designed for remote receiver applications.

  • Type: Side view sensor
  • Package: Tube
  • Standard Package Quantity: 90 pcs
  • Supply Current: 900 µA
  • Sensing Distance: 45m
  • B.P.F. Center Frequency: 40.0kHz
  • Voltage Supply: 2.5V to 5.5V
  • Mounting: Through hole
  • Operating Temperature: -25°C to 85°C
  • Status: Active
