Same model may have multiple batches, images only for reference.

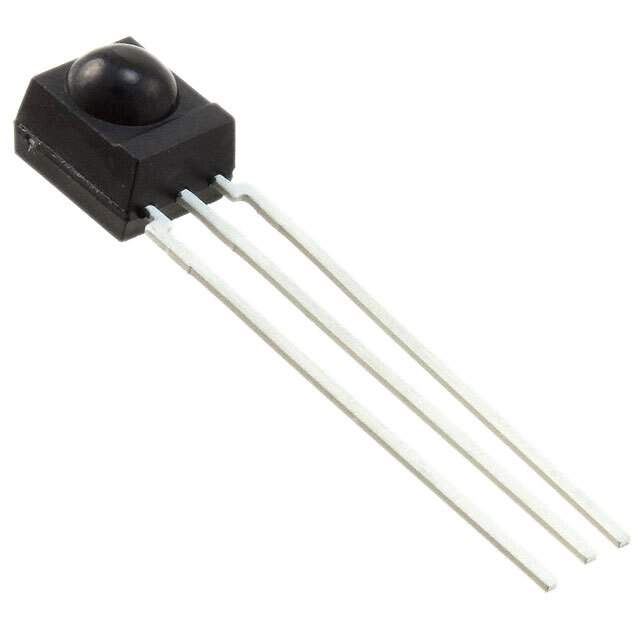

TSOP34136 Real Image
Same model may have multiple batches, images only for reference.

TSOP34136

Part No TSOP34136
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description 3V PH.MODULE 36KHZ S.VIEW
Datasheet
TSOP34136 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 350μA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 057149-TSOP34136
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP34136 CAD Model

Description

The Vishay TSOP34136 is a through-hole side view sensor with a sensing distance of 45m.

  • Operating Temperature Range: -25°C to 85°C
  • Operating Supply Voltage: 2.5V to 5.5V
  • Carrier Frequency: 36.0kHz
  • Operating Supply Current: 350μA
  • Packaged: in a tube/rail
  • Commonly Used In: sensors and transducers
