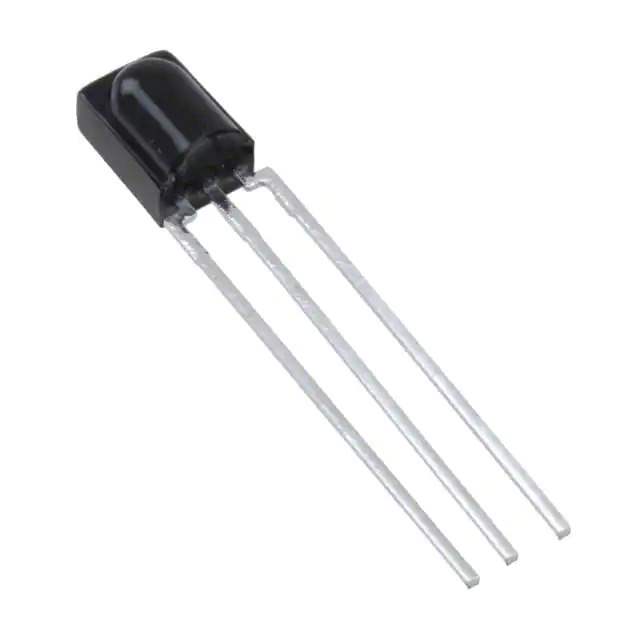

TSOP38140 Real Image
Same model may have multiple batches, images only for reference.

TSOP38140

Part No TSOP38140
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description SENSOR REMOTE REC 40.0KHZ 45M / Remote Receiver Sensor 40.0kHz 45m Through Hole
Datasheet
TSOP38140 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay
Package Bulk
Product Status Active
Sensing Distance 45m
B.P.F. Center Frequency 40.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 350 µA
Orientation Side View
Mounting Type Through Hole
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSOP38140
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 937781-TSOP38140
Ultra Librarian 3D Model Ultra Librarian TSOP38140 CAD Model

Description

The TSOP38140 is a remote receiver photo detector from Vishay.

  • Sensing Distance: 45m
  • Supply Voltage Range: 2.5V to 5.5V
  • Current Consumption: 350μA
  • B.P.F. Center Frequency: 40.0kHz
  • Mounting Type: Through-hole
  • Operating Temperature Range: -25°C to 85°C
  • Orientation: Side View
  • Package: Bulk
  • Package Quantity: 1,500 pcs
