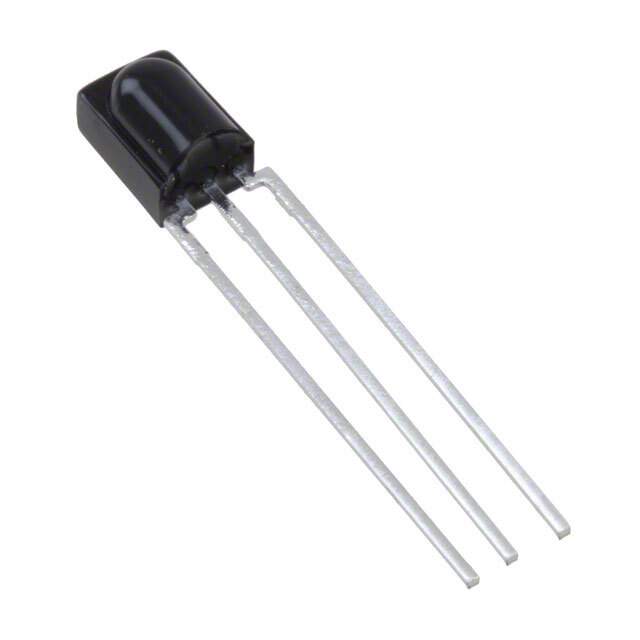

TSOP38238 Real Image
Same model may have multiple batches, images only for reference.

TSOP38238

Part No TSOP38238
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MOD 38KHZ DOME RADIAL
Datasheet
TSOP38238 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
Sensing Distance 45m
Carrier Frequency 38.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 450μA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 091716-TSOP38238
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Security
Family Name TSOP38238
Introduction Date October 07, 2008
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian TSOP38238 CAD Model

Description

The Vishay TSOP38238 is a through-hole mounted sensor with a sensing distance of 45m.

  • Part of Family: TSOP38238 family
  • Application: ideal for use in security applications
  • Status: active
  • Temperature Range: -25°C to 85°C (TA)
  • Operating Voltage: 2.5 V to 5.5 V
  • Operating Supply Current: 450μA
  • Compliance: ECCN EAR99 compliant
  • Compliance: halogen-free compliant
