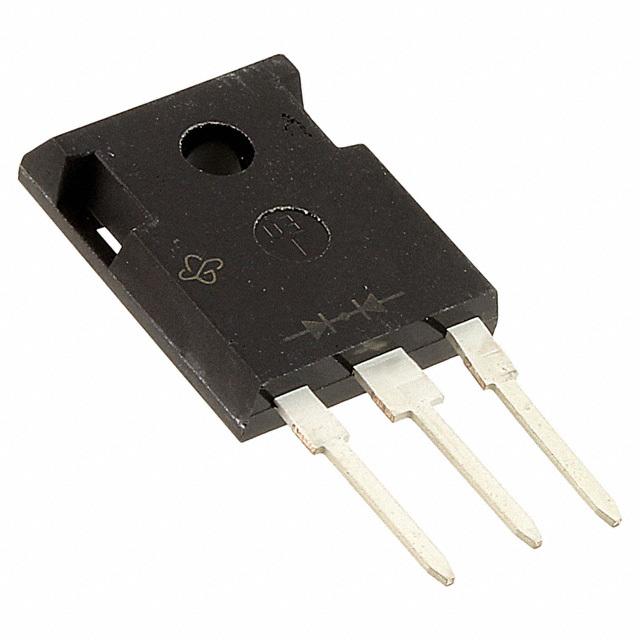

V80170PW-M3/4W Vishay
Same model may have multiple batches, images only for reference.

V80170PW-M3/4W

Part No V80170PW-M3/4W
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 170V TO3PW
Datasheet
V80170PW-M3/4W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 170V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 910mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 600μA @ 170V
Operating Temperature - Junction -40°C to 175°C
Mounting Through Hole
Case / Package TO-3PW
Win Source Part Number 043572-V80170PW-M3/4W
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V80170PW-M3/4W CAD Model

Description

This electronic component is manufactured by Vishay and has medium popularity with limited supply and demand status.

  • Win Source Part Number: 043572-V80170PW-M3/4W
  • Product Type: Schottky diode
  • Voltage - DC Reverse (Vr) (Max): 170V
  • Voltage - Forward (Vf) (Max) @ If: 910mV @ 40A
  • Current - Reverse Leakage @ Vr: 600μA @ 170V
  • Operating Temperature - Junction: -40°C to 175°C
  • Diode Configuration: 1 pair common cathode
  • Current - Average Rectified (Io) (per diode): 40A
  • Category: discrete semiconductor products
  • Case / Package: TO-3PW
  • Speed (Frequency): fast recovery 200mA (Io)
