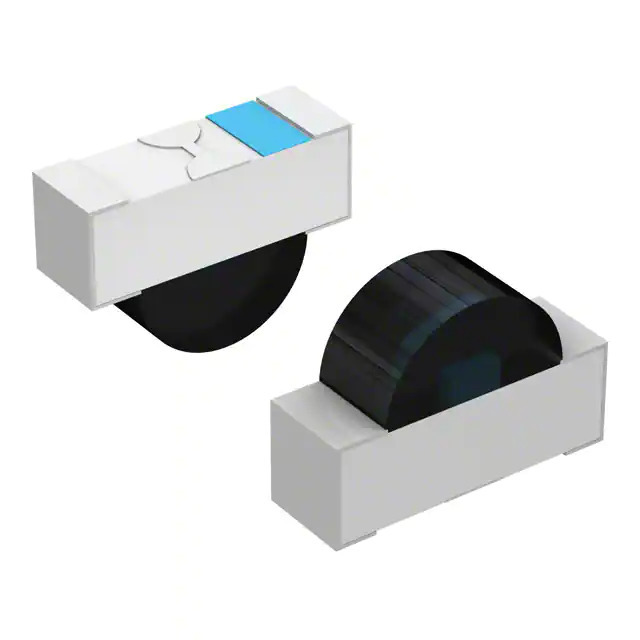

Same model may have multiple batches, images only for reference.
VEMD10940F Vishay
Same model may have multiple batches, images only for reference.

VEMD10940F

Part No VEMD10940F
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 790 TO 1050 NM
Datasheet
VEMD10940F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Series -
Package Tape & Reel
Product Status Active
Wavelength 920nm
Color - Enhanced -
Spectral Range 780nm ~ 1050nm
Diode Type PIN
Responsivity @ nm -
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Dark (Typ) 1nA
Active Area 0.23mm²
Viewing Angle 150°
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, No Lead
Base Product Number VEMD10940
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1372037-VEMD10940F
Ultra Librarian 3D Model Ultra Librarian VEMD10940F CAD Model

Description

The 1372037-VEMD10940F is a surface mount, right angle package photodiode from Vishay Semiconductor Opto Division.

  • Vr - Reverse Voltage (Max): 60V
  • Response Time: 100ns
  • Diode Type: PIN
  • Viewing Angle: 150°
  • Operating Temperature: -40°C ~ 100°C
  • Wavelength: 780nm ~ 1050nm
  • Active Area: 0.23mm²
  • Mounting Type: Surface Mount, Right Angle
