Same model may have multiple batches, images only for reference.

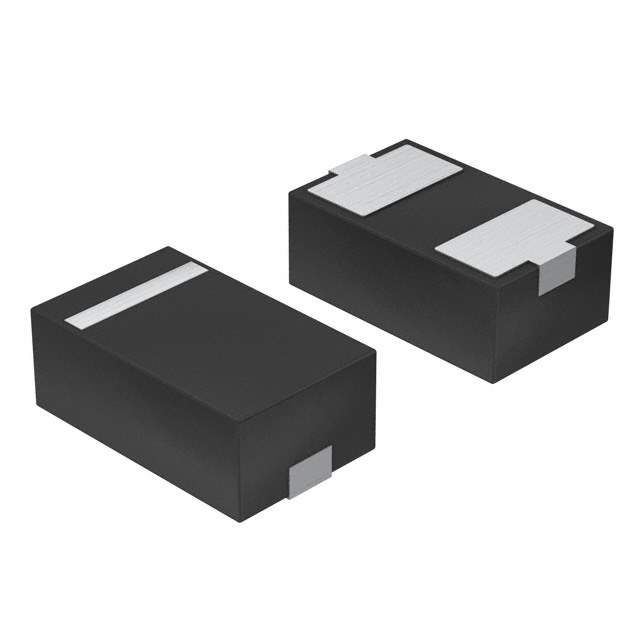

VESD05A1B-HD1 Real Image
Same model may have multiple batches, images only for reference.

VESD05A1B-HD1

Part No VESD05A1B-HD1
Manufacturer Vishay
Catalog TVS - Diodes
Description ESD-Protection Diode in LLP1006-2L
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

RoHS State Request Verification
Manufacturer Vishay
Win Source Part Number 1279177-VESD05A1B-HD1
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VESD05A1B-HD1 CAD Model

Description

The Vishay VESD05A1B-HD1 is a high-quality electrostatic discharge (ESD) protection diode designed to provide reliable protection against electrostatic discharges in electronic circuits.

  • Manufacturer Homepage: www.vishay.com
  • Popularity: Medium
  • Applications: Data lines, communication lines, and power supply lines.
  • Maximum Clamping Voltage: 12V
  • Maximum Peak Pulse Current: 2A
  • Compliance: RoHS compliant
