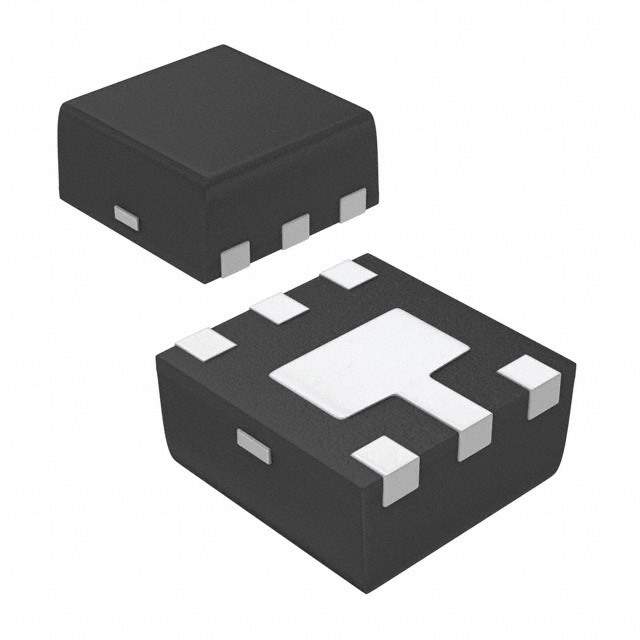

VESD05A5A-HSF-GS08 Real Image
Same model may have multiple batches, images only for reference.

VESD05A5A-HSF-GS08

Part No VESD05A5A-HSF-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 13VC LLP756L
Datasheet
VESD05A5A-HSF-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 5
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Power Dissipation - Pd 33W
Applications General Purpose
Capacitance @ Frequency 13pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP75-6L
Win Source Part Number 1117001-VESD05A5A-HSF-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VESD05A5A-HSF-GS08 CAD Model

Description

The Vishay Zener Type Diode is a high-quality electronic component that is designed to provide reliable and efficient performance.

  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 13V
  • Peak Pulse Current (Ippm): 2.5A (8/20μs)
  • Power Dissipation (Pd): 33W
  • Package: LLP75-6L
  • Packaging: Reel-TR
  • Category: Circuit Protection
  • Status: Active
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Popularity: Medium
