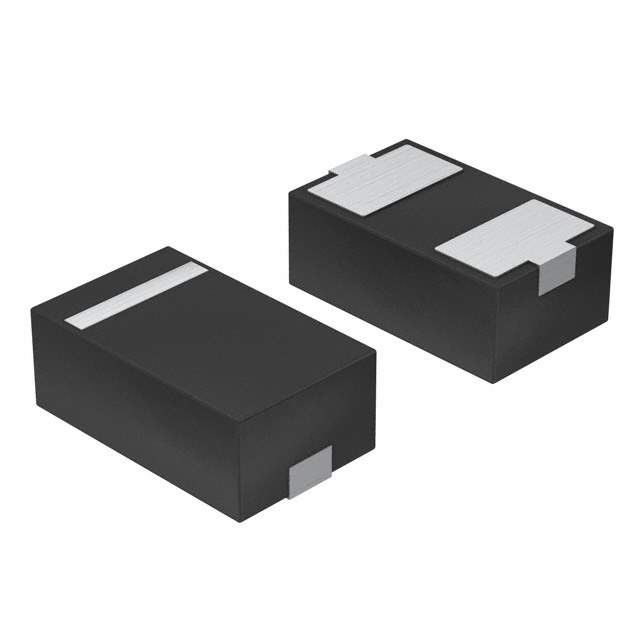

VESD15A1-HD1-G4-08 Real Image
Same model may have multiple batches, images only for reference.

VESD15A1-HD1-G4-08

Part No VESD15A1-HD1-G4-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 15VWM 27VC LLP1006-2L / 27V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount LLP1006-2L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V (Max)
Voltage - Breakdown (Min) 15.5V
Voltage - Clamping (Max) @ Ipp 27V
Current - Peak Pulse (10/1000µs) 6A (8/20µs)
Power - Peak Pulse 150W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 45pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package LLP1006-2L
Base Product Number VESD15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names VESD15A1-HD1-G4-08GITR,VESD15A1-HD1-G4-08GIDKR,VESD15A1-HD1-G4-08GICT
Standard Package 8,000
Win Source Part Number 1103822-VESD15A1-HD1-G4-08
Ultra Librarian 3D Model Ultra Librarian VESD15A1-HD1-G4-08 CAD Model

Description

The VESD15A1-HD1-G4-08 is a Zener diode from Vishay General Semiconductor - Diodes Division.

  • Series: TransZorb
  • Designed for: General purpose applications
  • Voltage Reverse Standoff: 15V (typ)
  • Voltage Breakdown: 15.5V (min)
  • Voltage Clamping: 27V @ Ipp
  • Peak Pulse Power: 150W
  • Current Peak Pulse: 6A (8/20µs)
  • Capacitance: 45pF @ 1MHz
  • Package: SOD-882
  • Maximum Operating Temperature: -40°C ~ 125°C
  • Market Status: Open market
  • REACH Status: Unaffected by REACH status
