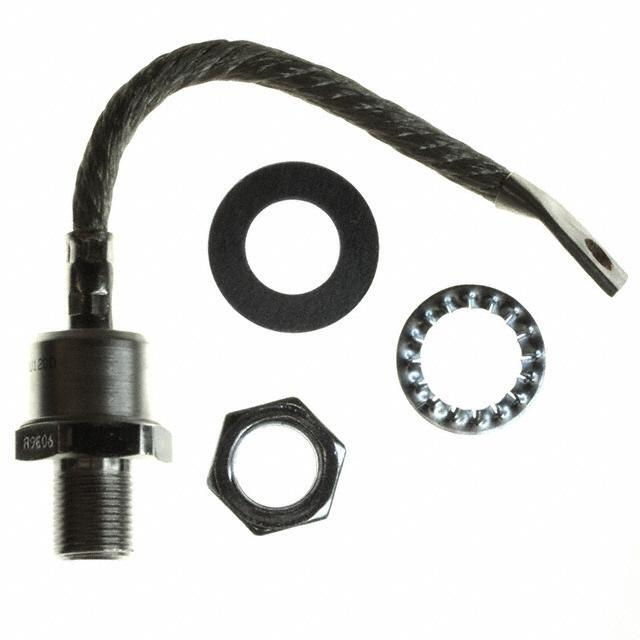

VS-300U10A Vishay
Same model may have multiple batches, images only for reference.

VS-300U10A

Part No VS-300U10A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 300A DO205AB
Datasheet
VS-300U10A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) 300A
Voltage - Forward (Vf) (Maximum) @ If 1.4V @ 942A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 40mA @ 100V
Mounting Chassis, Stud Mount
Package DO-205AB, DO-9, Stud
Manufacturer Package DO-205AB, DO-9
Operating Temperature - Junction -65°C ~ 200°C
Win Source Part Number 763066-VS-300U10A
Popularity Medium
Supply and Demand Status Limited
Family Name VS-300U10A
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-300U10A CAD Model

Description

The Vishay Semiconductor Diodes Division VS-300U10A is a standard diode from Vishay Semiconductor Diodes Division.

  • Current Rating: 300A
  • Voltage Rating: 100V
  • Maximum Forward Voltage: 1.4V @ 942A
  • Reverse Leakage Current: 40mA @ 100V
  • Mounting Type: Chassis and Stud
  • Package: DO-205AB, DO-9, Stud
  • Operating Temperature: -65°C to 200°C
  • Family: VS-300U10A
  • Category: Discrete Semiconductor Product
  • Estimated EOL Date: 2026
