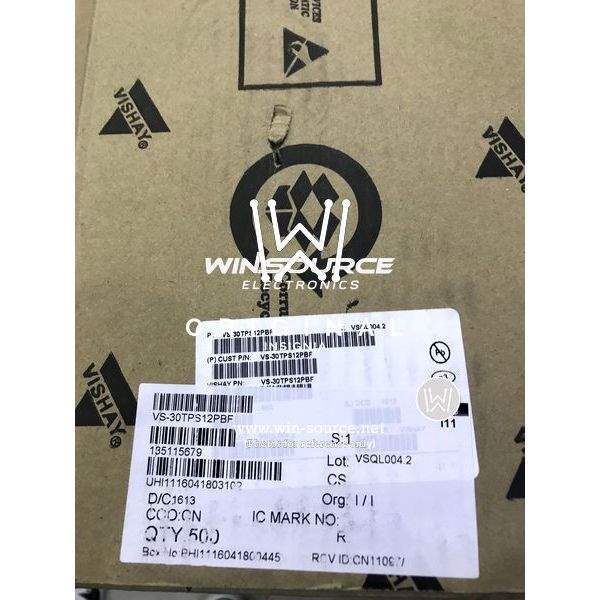

VS-30TPS12PBF Vishay VS-30TPS12PBF label picture
Same model may have multiple batches, images only for reference.
VS-30TPS12PBF Vishay VS-30TPS12PBF label picture
VS-30TPS12PBF Vishay VS-30TPS12PBF label picture
Same model may have multiple batches, images only for reference.

VS-30TPS12PBF

Part No VS-30TPS12PBF
Manufacturer Vishay
Catalog SCRs - Single
Description SCR PHASE CTRL 1200V 30A TO247AC
Datasheet
VS-30TPS12PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Voltage - Off State 1200V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 45mA
Voltage - On State (Vtm) (Maximum) 1.3V
Current - On State (It (AV)) (Maximum) 20A
Current - On State (It (RMS)) (Maximum) 30A
Current - Hold (Ih) (Maximum) 100mA
Current - Off State (Maximum) 500μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 300A @ 50Hz
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247AC
Win Source Part Number 763128-VS-30TPS12PBF
Popularity Medium
Supply and Demand Status Balance
Family Name VS-30TPS12
Introduction Date March 27, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian VS-30TPS12PBF CAD Model

Description

The 763128-VS-30TPS12PBF is a standard recovery SCR from Vishay Semiconductor Diodes Division.

  • Voltage Off State: 1200V
  • Current Non-Rep. Surge: 300A @ 50Hz
  • Current On State: 30A (maximum)
  • Voltage Gate Trigger: 2V (maximum)
  • Current Gate Trigger: 45mA (maximum)
  • Current Hold: 100mA (maximum)
  • Voltage On State: 1.3V (maximum)
  • Current On State: 20A (maximum)
  • Current Off State: 500μA (maximum)
  • Package: TO-247-3
  • Operating Temperature: -40°C to 125°C
  • Category: Discrete Semiconductor Products
