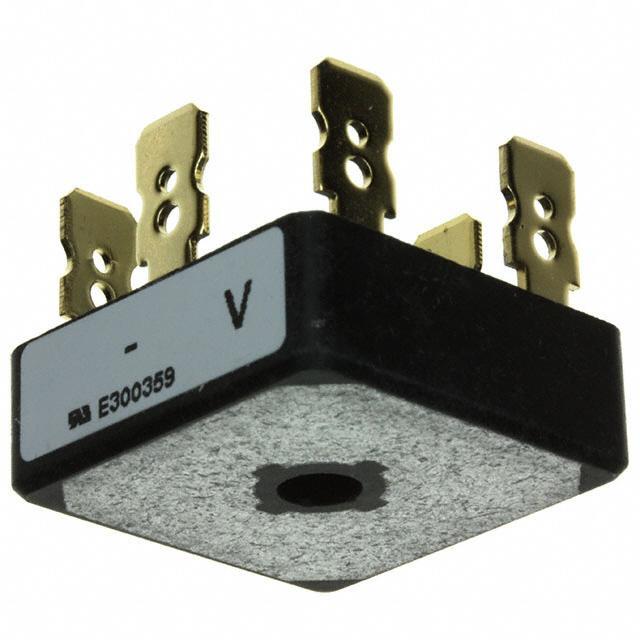

VS-36MT160 Vishay VS-36MT160 Real Image
Same model may have multiple batches, images only for reference.
VS-36MT160 Vishay VS-36MT160 Real Image
VS-36MT160 Vishay VS-36MT160 Real Image
Same model may have multiple batches, images only for reference.

VS-36MT160

Part No VS-36MT160
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Three Phase Bridge (Power Modules), 25/35 A
Datasheet
VS-36MT160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1600V
Current - Average Rectified (Io) 35A
Current - Reverse Leakage @ Vr 10μA @ 1600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 5-Square, D-63
Manufacturer Package D-63
Win Source Part Number 1279814-VS-36MT160
Manufacturer Homepage www.vishay.com
Family Name VS-36MT160
ECCN EAR99
Country of Origin India
Estimated EOL Date 2029
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Sensing & Instrumentation
Ultra Librarian 3D Model Ultra Librarian VS-36MT160 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-36MT160 is a high-quality three-phase diode with a current of 35A and a voltage of 1600V.

  • Technology: Standard
  • Mounting Type: QC Terminal
  • Voltage Peak Reverse: 1600V
  • Current Reverse Leakage: 10μA @ 1600V
  • Package: 5-square, D-63
  • Operating Temperature: -55°C to 150°C
