Same model may have multiple batches, images only for reference.

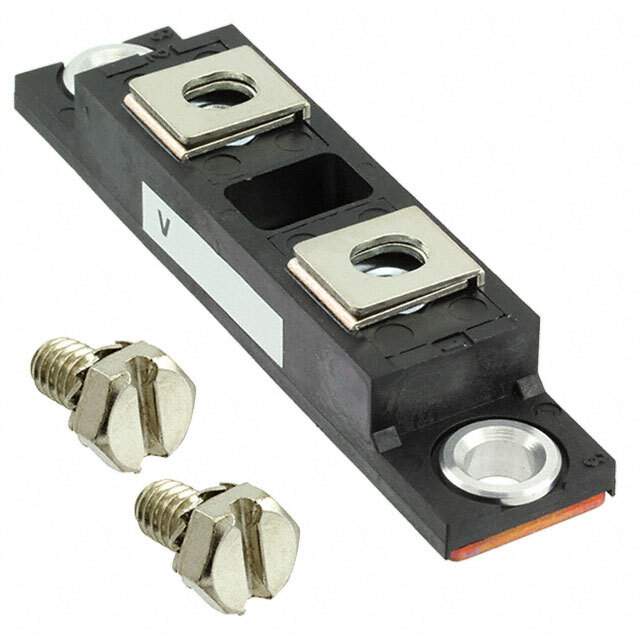

VS-403CNQ100PBF Real Image
Same model may have multiple batches, images only for reference.

VS-403CNQ100PBF

Part No VS-403CNQ100PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 100V 200A TO244
Datasheet
VS-403CNQ100PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 200A
Voltage - Forward (Vf) (Maximum) @ If 840mV @ 200A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 6mA @ 100V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Chassis Mount
Package TO-244AB
Manufacturer Package TO-244AB
Win Source Part Number 763528-VS-403CNQ100PBF
Popularity Medium
Supply and Demand Status Limited
Family Name VS-403CNQ100
Introduction Date April 16, 2014
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-403CNQ100PBF CAD Model

Description

The Vishay Semiconductor Diodes Division VS-403CNQ100PBF is a TO-244AB chassis mount Schottky diode.

  • Applications: Power Supplies, Motor Controls, and Industrial Applications
  • Recovery Speed: 200mA (Io)
  • Maximum Average Rectified Current: 200A
  • Maximum Voltage: 100V
  • Maximum Forward Voltage: 840mV @ 200A
  • Packaging: Bulk
  • Supply and Demand Status: Limited
