Same model may have multiple batches, images only for reference.

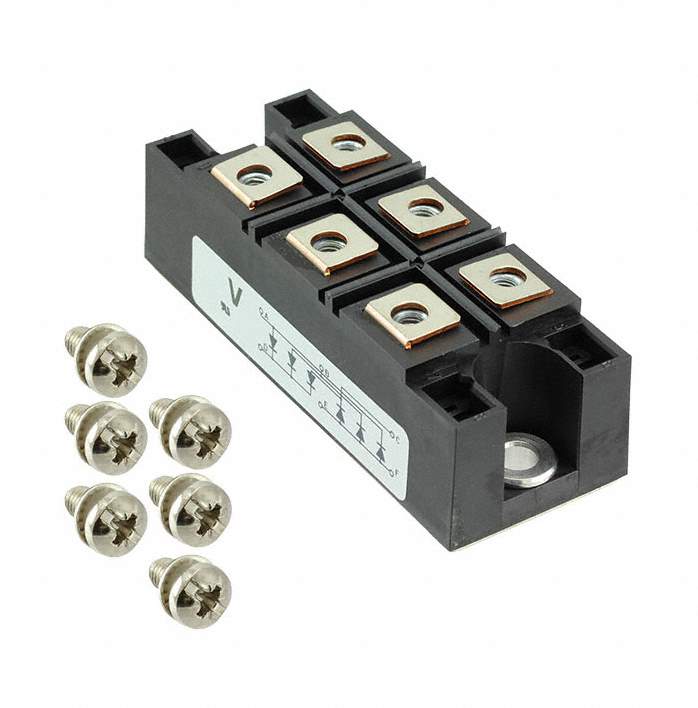

VS-90MT120KPBF Real Image
Same model may have multiple batches, images only for reference.

VS-90MT120KPBF

Part No VS-90MT120KPBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description POWER MOD 3PH BRIDGE 55A MTK
Datasheet
VS-90MT120KPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tray
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1200V
Current - Average Rectified (Io) 90A
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package MT-K Module
Manufacturer Package MT-K
Win Source Part Number 766456-VS-90MT120KPBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 15
Family Name VS-90MT120K
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian VS-90MT120KPBF CAD Model

Description

The Vishay Semiconductor Diodes Division has manufactured this electronic component.

  • Win Source Part Number: 766456-VS-90MT120KPBF
  • Package: Tray
  • Operating Temperature Range: -40°C ~ 150°C (TJ)
  • Mounting Type: Chassis
  • Diode Type: Standard Three-Phase
  • Average Rectified Current: 90A
  • Voltage Peak Reverse (Maximum): 1200V
  • Supply and Demand: Limited
  • Quantity Per Package: 15
