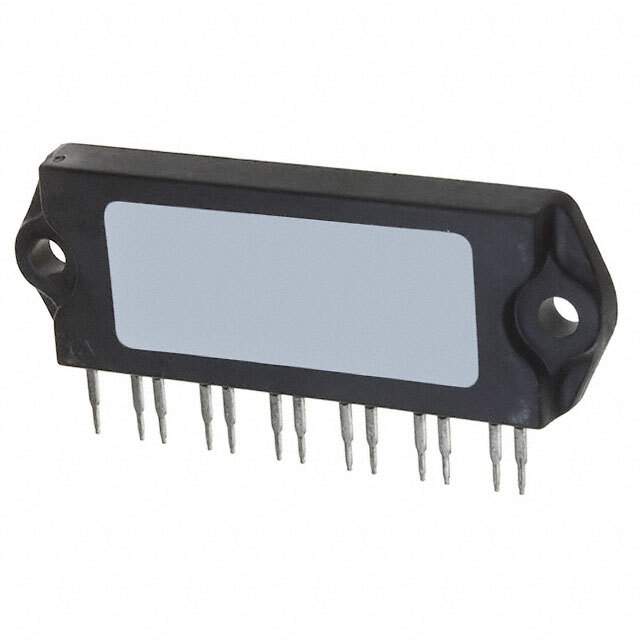

VS-CPV364M4FPBF Real Image
Same model may have multiple batches, images only for reference.

VS-CPV364M4FPBF

Part No VS-CPV364M4FPBF
Manufacturer Vishay
Catalog IGBTs - Modules
Description MOD IGBT 3PHASE INV 600V SIP
Datasheet
VS-CPV364M4FPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 27A
Maximum Power Dissipation 63W
Collector-emitter saturation voltage(Max) 1.5V @ 15V, 15A
Collector Cut-off Current(Max) 250μA
Input Capacitance (Cies) @ Vce 2.2nF @ 30V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package IMS-2
Win Source Part Number 139698-VS-CPV364M4FPBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 160
Ultra Librarian 3D Model Ultra Librarian VS-CPV364M4FPBF CAD Model

Description

The VS-CPV364M4FPBF is a discrete semiconductor product manufactured by Vishay.

  • Applications: through hole mounting, standard input, and IGBT type
  • Input Capacitance (Cies) @ Vce: 2.2nF @ 30V
  • Current Collector (Max): 27A
  • VCEO: 600V
  • Collector Cut-off Current (Max): 250μA
  • Maximum Power Dissipation: 63W
  • Collector-Emitter Saturation Voltage (Max): 1.5V @ 15V, 15A
  • Supply and Demand: limited
  • Quantity per Package: 160
