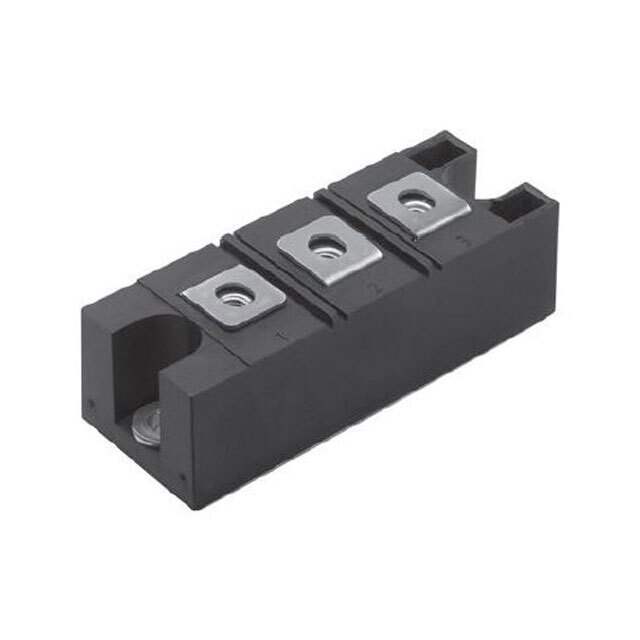

VS-VSKCS409/150 Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

VS-VSKCS409/150

Part No VS-VSKCS409/150
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 150V 200A ADDAPAK
Datasheet
VS-VSKCS409/150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203311-VS-VSKCS409/150
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products- Diodes Rectifiers Diode Arrays
Package Bulk
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Chassis Mount
Package / Case ADD-A-PAK (3)
Supplier Device Package ADD-A-PAK®
Ultra Librarian 3D Model Ultra Librarian VS-VSKCS409/150 CAD Model

Description

The VS-VSKCS409/150 Schottky rectifier common cathode has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection.
