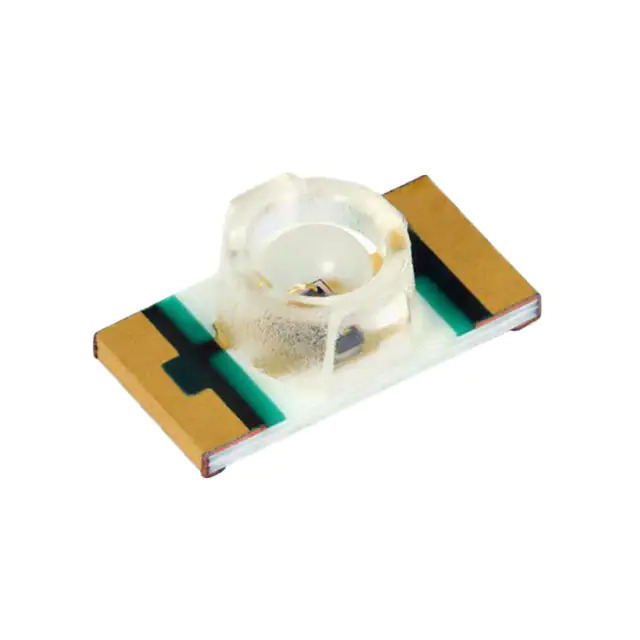

VSMY12850 Vishay
Same model may have multiple batches, images only for reference.

VSMY12850

Part No VSMY12850
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 850NM 70MA SMD
Datasheet
VSMY12850 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Vishay Semiconductor Opto Division
Series -
Package Tape & Reel
Product Status Active
Type Infrared (IR)
Current - DC Forward (If) (Max) 70mA
Radiant Intensity (Ie) Min @ If 16mW/sr @ 70mA
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 1.4V
Viewing Angle 80°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Base Product Number MY12850
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371992-VSMY12850
Ultra Librarian 3D Model Ultra Librarian VSMY12850 CAD Model

Description

The VSMY12850 is an infrared (IR) LED emitter with a wavelength of 850nm from Vishay Semiconductor Opto Division.

  • Wavelength: 850nm
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • Voltage - Forward (Vf) (Typ): 1.4V
  • Current - DC Forward (If) (Max): 70mA
  • Radiant Intensity (Ie) Min @ If: 16mW/sr @ 50mA
  • Viewing Angle: 80°
  • Package / Case: 1206 (3216 Metric)
  • Packaging: Tape & Reel (TR)
  • Category: Active Component
  • Application: Remote controls, security systems, and proximity sensors
