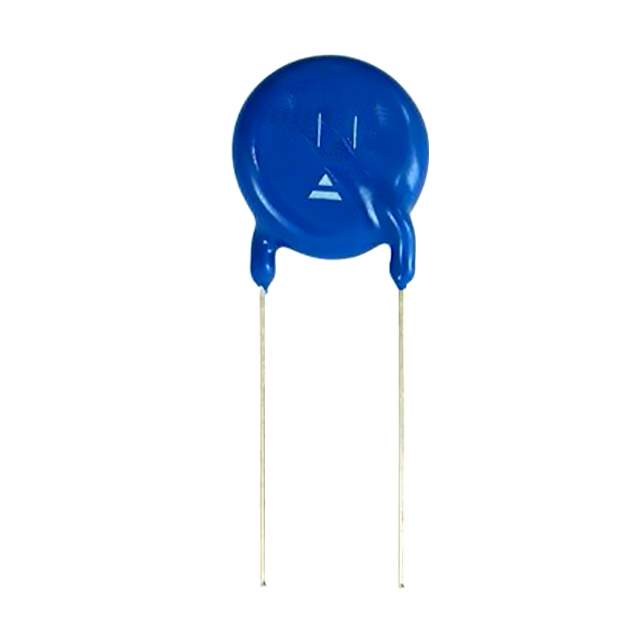

WKP472MCPDRUKR Real Image
Same model may have multiple batches, images only for reference.

WKP472MCPDRUKR

Part No WKP472MCPDRUKR
Manufacturer Vishay
Catalog Ceramic Capacitors
Description Cap Ceramic Single Suppression X1/Y1 0.0047uF 760VAC/500VAC Y5U 20% (18 X 6mm) Radial Disc 10mm 125°C T/R / CAP CER 4700PF 760VAC Y5U RADIAL
Datasheet
WKP472MCPDRUKR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Bulk
Status Active
Capacitance 4700pF
Tolerance ±20%
Voltage Rating 760VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -40°C to 125°C
Ratings X1, Y1
Applications Safety
Mounting Through Hole
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Lead Spacing 0.492" (12.50mm)
Lead Style Straight
Win Source Part Number 213987-WKP472MCPDRUKR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name WKP
Introduction Date February 16, 2006
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian WKP472MCPDRUKR CAD Model

Description

The Vishay WKP series capacitor is a high voltage ceramic capacitor designed for safety applications.

  • Series: WKP series
  • Manufacturer: Vishay
  • Application: safety
  • Voltage Rating: 760VAC
  • Capacitance: 4700pF
  • Tolerance: ±20%
  • Temperature Coefficient: Y5U (E)
  • Ratings: X1, Y1
  • Height: 0.827" (21.00mm)
  • Lead Spacing: 0.492" (12.50mm)
  • Lead Style: straight
  • Mounting: through-hole
  • Estimated EOL Date: 2022
  • Popularity: high popularity of 80%
  • Supply and Demand Status: balanced
