Same model may have multiple batches, images only for reference.

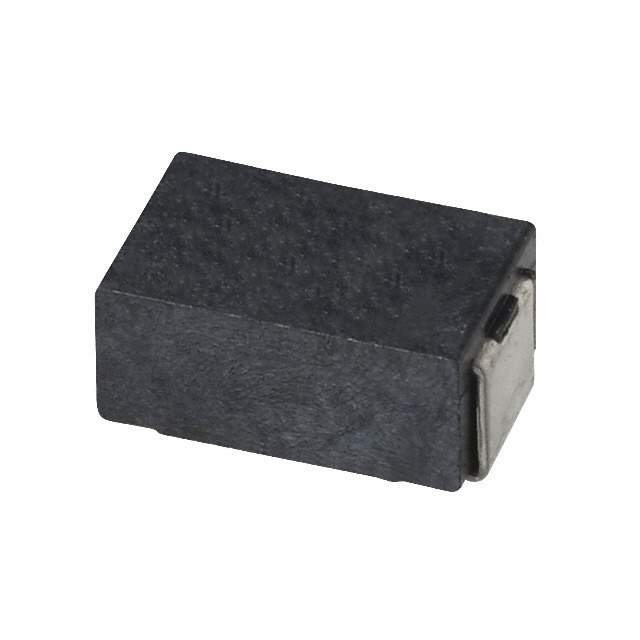

WSC00021R000FEA Real Image
Same model may have multiple batches, images only for reference.

WSC00021R000FEA

Part No WSC00021R000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 1 OHM 1% 2W 4527 / 1 Ohms ±1% 2W Chip Resistor 4527 J-Lead Automotive AEC-Q200, Pulse Withstanding Wirewound
Datasheet
WSC00021R000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSC
Package Tape & Reel
Resistance 1 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Package / Case 4527 J-Lead
Supplier Device Package 4527
Ratings AEC-Q200
Dimension 0.455" L x 0.275" W (11.56mm x 6.98mm)
Height - Seated (Max) 0.177" (4.49mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-WSC00021R000FEACT,541-WSC00021R000FEADKR,541-WSC00021R000FEATR
Standard Package 1,200
Win Source Part Number 996043-WSC00021R000FEA
Ultra Librarian 3D Model Ultra Librarian WSC00021R000FEA CAD Model

Description

The WSC series chip resistor is a wirewound resistor with a resistance of 1 Ohms.

  • Resistance: 1 Ohms
  • Power Rating: 2W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • AEC-Q200: Yes
  • Package: 4527 J-Lead
  • Seated Height: 0.177" (4.49mm)
  • Manufacturer: Vishay Dale WSC00021R000FEA
  • Application: Automotive and pulse withstanding
  • Standard Package: 1,200
  • Packaging: Tape and reel
  • Operating Temperature Range: -65°C to 275°C
  • Dimensions: 0.455" L x 0.275" W (11.56mm x 6.98mm)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8533.21.0030
