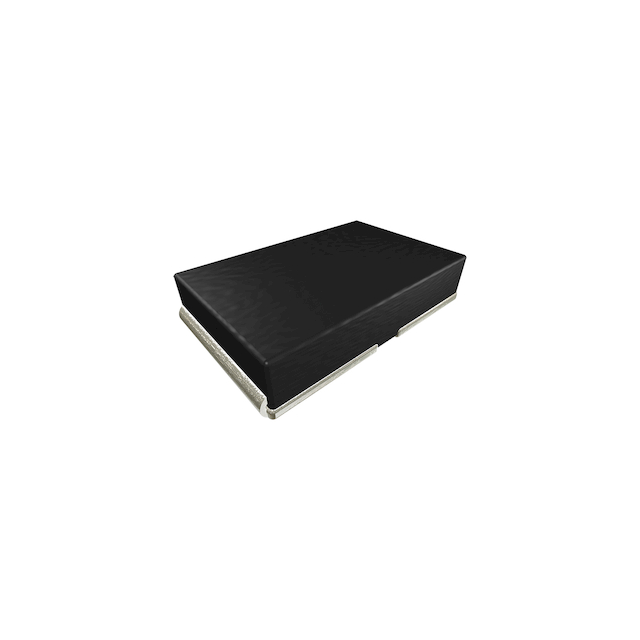

WSHM28183L000FEA Real Image
Same model may have multiple batches, images only for reference.

WSHM28183L000FEA

Part No WSHM28183L000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.003 OHM 1% 7W 2818 / 3 mOhms ±1% 7W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSHM28183L000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 3 mOhms
Tolerance ±1%
Power (Watts) 7W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Case / Package Nonstandard
Supplier Device Package 2818
Ratings AEC-Q200
Size / Dimension 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max) 0.069" (1.75mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-2619-2,541-2619-1,541-2619-6
Standard Package 3,500
Win Source Part Number 1327054-WSHM28183L000FEA
Ultra Librarian 3D Model Ultra Librarian WSHM28183L000FEA CAD Model

Description

The Vishay Dale WSHM28183L000FEA is a surface mount metal element chip resistor.

  • Resistance: 3 mOhms
  • Tolerance: ±1%
  • AEC-Q200 Rated: Yes
  • Power Rating: 7W
  • Temperature Coefficient: ±200ppm/°C
  • Terminations: 2
  • Package Size: 2818
  • Packaging: Reel
  • Quantity per Reel: 3500
  • Designed for Automotive Applications: Yes
  • Moisture Resistant: Yes
  • Pulse Withstanding: Yes
  • Operating Temperature Range: -65°C to 170°C
