Same model may have multiple batches, images only for reference.

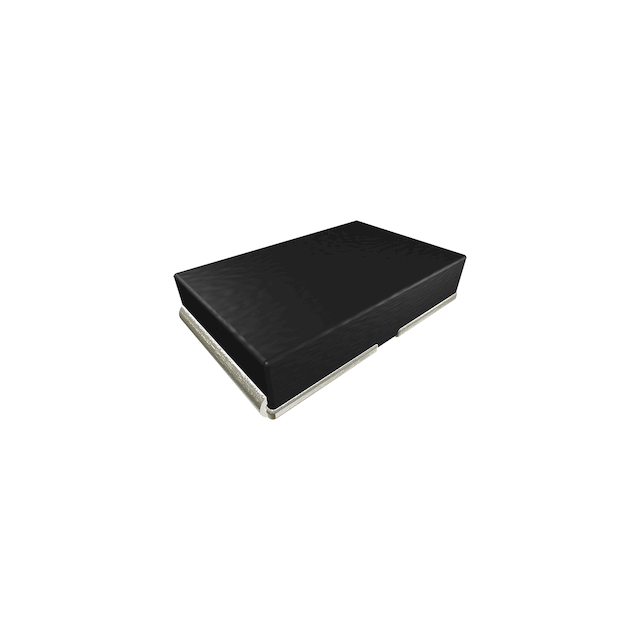

WSHM28185L000FEA Real Image
Same model may have multiple batches, images only for reference.

WSHM28185L000FEA

Part No WSHM28185L000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 7W 2818 / 5 mOhms ±1% 7W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSHM28185L000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 7W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Case / Package Nonstandard
Supplier Device Package 2818
Ratings AEC-Q200
Size / Dimension 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max) 0.069" (1.75mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-2621-6,541-2621-2,541-2621-1
Standard Package 3,500
Win Source Part Number 1327061-WSHM28185L000FEA
Ultra Librarian 3D Model Ultra Librarian WSHM28185L000FEA CAD Model

Description

The Vishay Dale WSHM28185L000FEA chip resistor is a surface mount product.

  • Win Source Part Number: 1327061-WSHM28185L000FEA
  • Package: reel - TR
  • Automotive AEC-Q200 Compliant: Yes
  • Moisture Resistant: Yes
  • Pulse-Withstanding: Yes
  • Size/Dimension: 0.280" L x 0.181" W (7.10mm x 4.60mm)
  • Seated Height: 0.069" (1.75mm)
  • Standard Package: 3,500
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • AEC-Q200 Rated: Yes
  • Power: 7W
  • Composition: Metal Element
  • Terminations: Two
  • Resistance: 5 mOhms
  • Supplier Device Package: 2818
  • Operating Temperature: -65°C ~ 170°C
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
