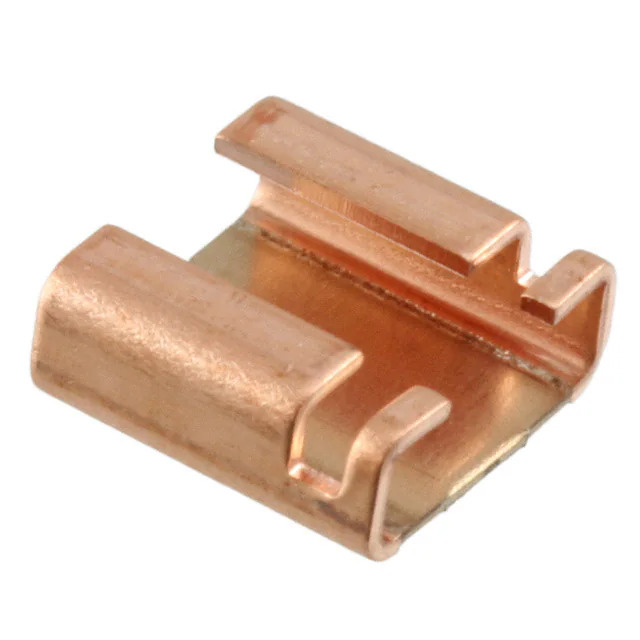

WSL27265L000FEB Vishay
Same model may have multiple batches, images only for reference.

WSL27265L000FEB

Part No WSL27265L000FEB
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 3W 2726
Datasheet
WSL27265L000FEB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSL
Package Tape & Reel
Product Status Active
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 3W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2726
Ratings AEC-Q200
Size / Dimension 0.272" L x 0.260" W (6.90mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Number of Terminations 4
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375568-WSL27265L000FEB
Ultra Librarian 3D Model Ultra Librarian WSL27265L000FEB CAD Model

Description

The WSL27265L000FEB is a chip resistor from Vishay Dale's WSL series. It is a surface mount resistor with a resistance value of 5mΩ and a power rating of 3W.

  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Anti-Sulfur Coating: Yes
  • Automotive AEC-Q200: Compliance
  • Moisture Resistance: Yes
  • Pulse Withstanding: Yes
  • Package/Case: Nonstandard
  • Packaging: Tape and Reel
  • Size: 0.272" L x 0.260" W (6.90mm x 6.60mm)
  • Height: 0.118" (3.00mm)
