Same model may have multiple batches, images only for reference.

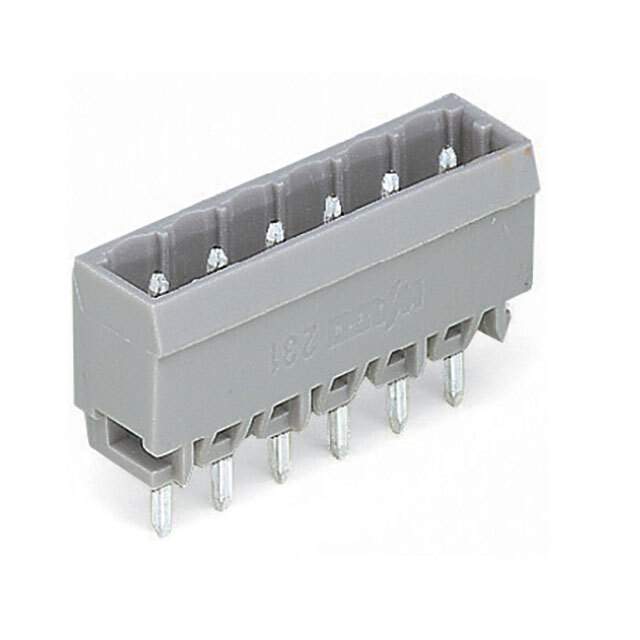

231-132/001-000 Real Image
Same model may have multiple batches, images only for reference.

231-132/001-000

Part No 231-132/001-000
Manufacturer WAGO Corporation
Catalog Terminal Blocks
Description THT MALE HEADER; 1.0 X 1.0 MM SO / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI Classic
Package Box
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 600 V
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.197" (5.00mm)
Insulation Height 0.472" (12.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Names 0231-132/001-000,2946-231-132/001-000,0231132/001000,2943-231-132/001-000,2943-231-132/001-000-ND,0231-0132/0001-0000,51148888,231132/001000
Standard Package 1
Win Source Part Number 1116195-231-132/001-000
Ultra Librarian 3D Model Ultra Librarian 231-132/001-000 CAD Model

Description

The 1116195-231-132/001-000 is a terminal block header from WAGO Corporation.

  • Manufacturer: WAGO Corporation
  • Series: MCSMIDI Classic
  • Positions: 2
  • Pitch: 0.197" (5.00mm)
  • Type: Male Pins, Shrouded (4 Side)
  • Orientation: Vertical Header
  • Termination Style: Solder
  • Contact Mating Finish: Tin
  • Current Rating (IEC): 12A
  • Current Rating (UL): 10A
  • Voltage Rating (IEC): 320V
  • Voltage Rating (UL): 600V
  • Contact Material: Electrolytic Copper
  • Color: Gray
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Mounting Type: Through Hole
  • Temperature Range: -60°C ~ 100°C
  • Contact Tail Length: 0.197" (5.00mm)
  • Insulation Height: 0.472" (12.00mm)
