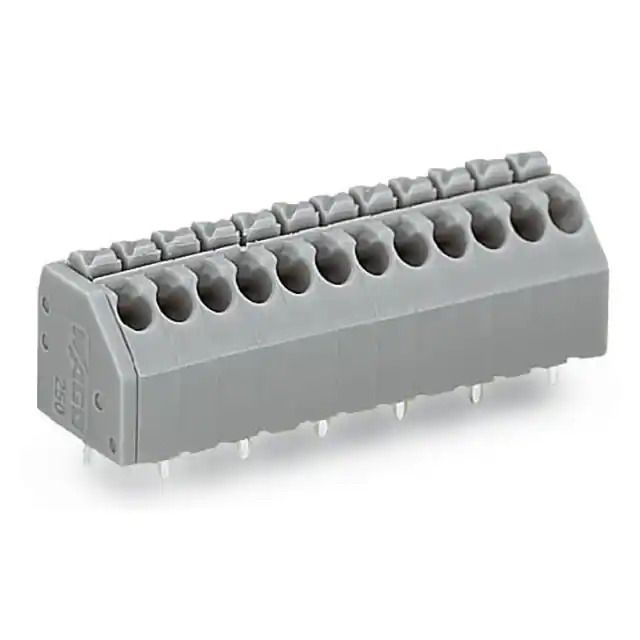

Same model may have multiple batches, images only for reference.
250-209 WAGO Corporation
Same model may have multiple batches, images only for reference.

250-209

Part No 250-209
Manufacturer WAGO Corporation
Catalog Terminal Blocks
Description PCB TERMINAL BLOCK; PUSH-BUTTON; / 9 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr WAGO Corporation
Series -
Package Box
Product Status Active
Number of Levels 1
Positions Per Level 9
Pitch 0.138" (3.50mm)
Mating Orientation 45° (135°) Angle with Board
Current 8 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Push Button Clamp
Features -
Color Gray
Temperature Range - Operating -60°C ~ 105°C
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Electrolytic Copper - Tin Plated
Clamp Material - Plating Copper Alloy
Screw Material - Plating -
Torque - Screw -
Screw Thread -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363500-250-209
Ultra Librarian 3D Model Ultra Librarian 250-209 CAD Model

Description

The WAGO Corporation presents the 1363500-250-209, a terminal block connector designed for wire-to-board applications.

  • Operating Temperature: -60°C to 105°C
  • Wire Termination: Screwless Push Button Clamp
  • Contact Material: Electrolytic Copper with Tin Plating
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Current Rating: 8A
  • Voltage Rating: 300V
  • Color: Gray
  • Pitch: 0.138" (3.50mm)
  • Positions per Level: 9
  • Number of Levels: 1
  • Mating Orientation: 45° (135°) angle with the board
