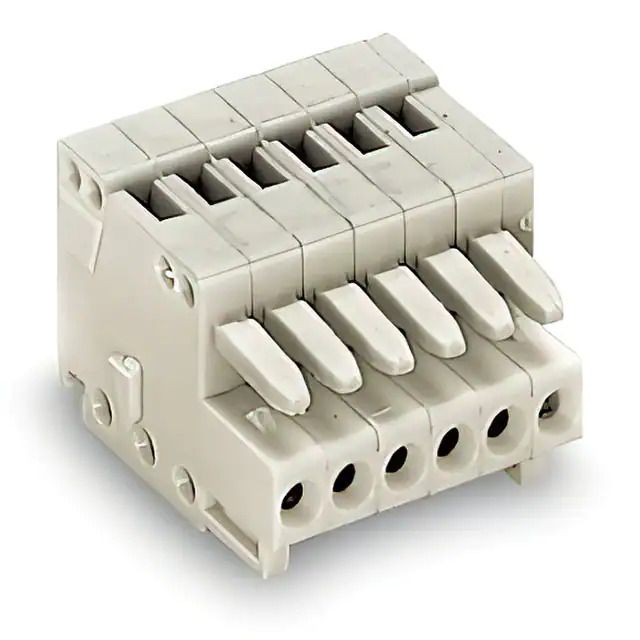

Same model may have multiple batches, images only for reference.

733-108

Name: 733-108
Brand: WAGO Corporation
SKU: 1364659
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	733-108
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	1-CONDUCTOR FEMALE PLUG; 100% PR / 8 Position Terminal Block Plug, Female Sockets 0.098" (2.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMICRO
Package	Box
Product Status	Active
Type	Plug, Female Sockets
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.098" (2.50mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting Type	Free Hanging (In-Line)
Current - IEC	6A
Voltage - IEC	320 V
Current - UL	4 A
Voltage - UL	150 V
Wire Gauge or Range - AWG	20-28 AWG
Wire Gauge or Range - mm²	0.08-0.5mm²
Color	Gray
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	5-6mm
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	-
Insulation Height	0.465" (11.80mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364659-733-108
Ultra Librarian 3D Model	Ultra Librarian 733-108 CAD Model

Alternative Products

Description

The WAGO Corporation MCSMICRO Plug is a compact and versatile terminal block connector designed for various applications.

Product Name: WAGO Corporation MCSMICRO Plug
Positions: 8
Material: Polyamide (PA66) and nylon 6/6
Mounting: Free hanging (in-line)
Termination Style: Screwless push-in spring
Current Rating: 6A
Voltage Rating: 150V
