770-805

Part No 770-805
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets

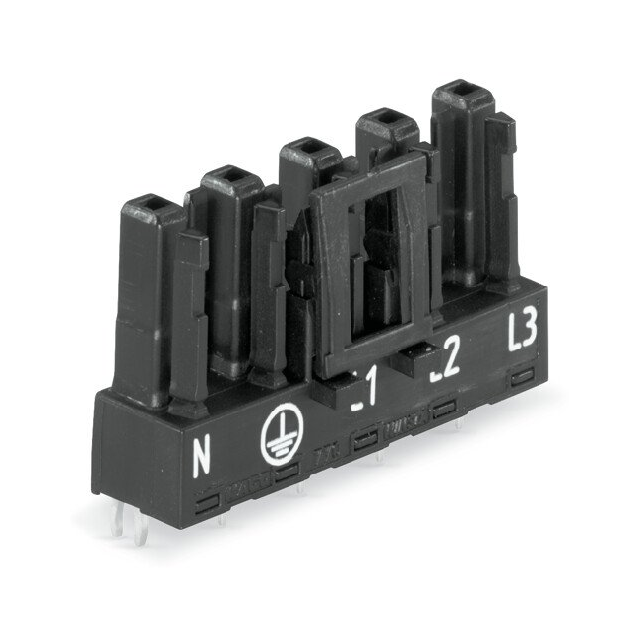

Description SOCKET FOR PCBS STRAIGHT 5-POLE,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsTerminal BlocksHeaders, Plugs and Sockets
Manufacturer WAGO Corporation
Series WINSTA? MIDI
Packaging Box
Part Status Active
Type Plug, Female Sockets
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 0.394" (10.00mm)
Plug Wire Entry 90°
Termination Style Solder
Mounting Type Panel Mount
Current - IEC 25A
Voltage - IEC 400 V
Current - UL 23 A
Voltage - UL 600 V
Color Black
Operating Temperature -35°C ~ 85°C
Features Locking Feature
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.138" (3.50mm)
Insulation Height 1.024" (26.01mm)
Ultra Librarian 3D Model Ultra Librarian 770-805 CAD Model
