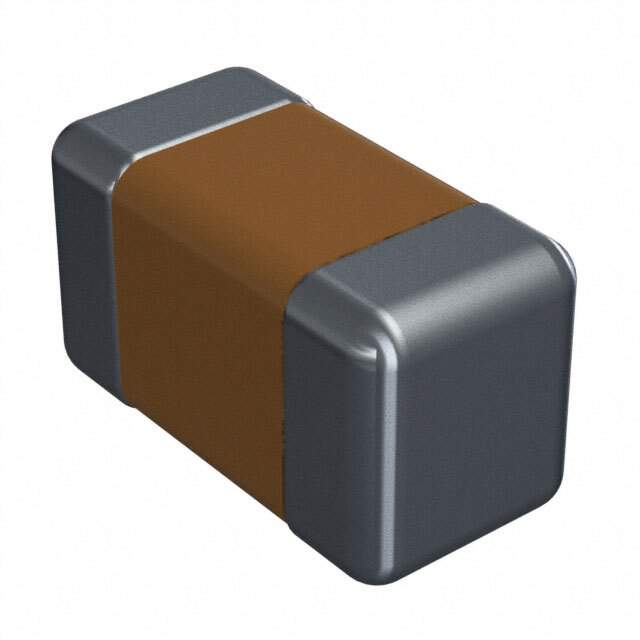

The 0402N121J500CT is a ceramic capacitor manufactured by Walsin Technology Corporation. It is a surface-mount multilayer ceramic capacitor (MLCC) designed for various general-purpose applications.

Applications

• Mobile phones and other wireless communication devices
• Consumer electronics (e.g., TVs, audio equipment, digital cameras)
• Data processing equipment
• Power supplies
• General decoupling and filtering applications

Features

• Small 0402 case size (0.04 inch x 0.02 inch)
• 120 pF capacitance
• ±5% capacitance tolerance
• 50 V voltage rating
• X5R dielectric
• Multilayer ceramic construction
• Surface mount technology (SMT)

Benefits

• Small size allows for high-density circuit designs.
• Stable performance over temperature variations due to X5R dielectric.
• Suitable for automated assembly due to SMT packaging.
• Reliable performance in various electronic circuits.
• Cost-effective solution for general-purpose capacitance needs.

Additional Details

The X5R dielectric provides stable capacitance over a temperature range of -55°C to +85°C. The 0402N121J500CT offers excellent electrical characteristics, including low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance). This makes it suitable for high-frequency applications. The capacitor is RoHS compliant, ensuring it meets environmental regulations regarding hazardous substances.

Proper handling and soldering techniques are essential for SMT components. Refer to the manufacturer's datasheet for recommended soldering profiles and handling precautions. Storage conditions should also be followed to maintain the component's integrity before soldering.
