Same model may have multiple batches, images only for reference.

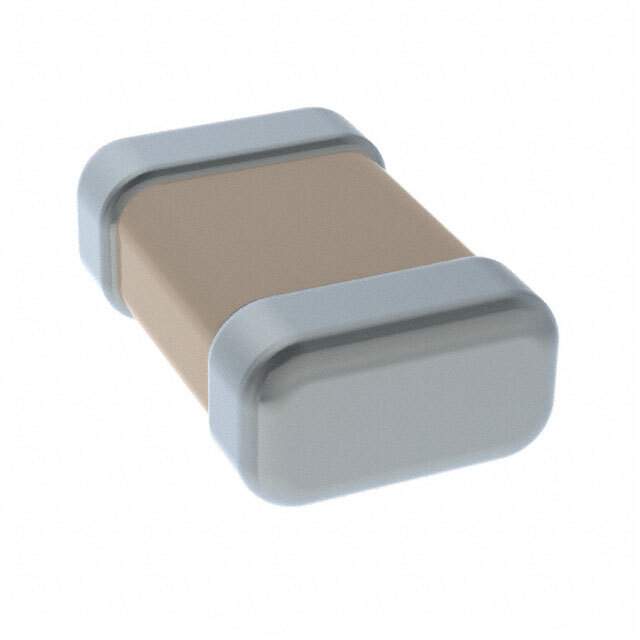

0805B103J500CT Real Image
Same model may have multiple batches, images only for reference.

0805B103J500CT

Part No 0805B103J500CT
Manufacturer Walsin Technology Corporation
Catalog Ceramic Capacitors
Description CAP CER 10000PF 50V X7R 0805 / 10000 pF ±5% 50V Ceramic Capacitor X7R 0805 (2012 Metric)
Datasheet
0805B103J500CT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer Walsin Technology Corporation
Packaging Reel - TR
Capacitance 10000 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.035" (0.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 1292-1559-1,1292-1559-6,1292-1559-2
Standard Package 4,000
Win Source Part Number 1330718-0805B103J500CT
Ultra Librarian 3D Model Ultra Librarian 0805B103J500CT CAD Model

Description

The Walsin Technology Corporation 0805 (2012 Metric) ceramic capacitor is a versatile component designed for general-purpose applications.

  • Capacitance: 10000 pF
  • Voltage Rating: 50V
  • Tolerance: ±5%
  • Temperature Coefficient: X7R
  • Mounting Type: Surface Mountable
  • Packaging: Reel
  • Package Size: 0.079 inches in length and 0.049 inches in width
  • Thickness: 0.035 inches
  • Operating Temperature: -55°C to 125°C
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
