Same model may have multiple batches, images only for reference.

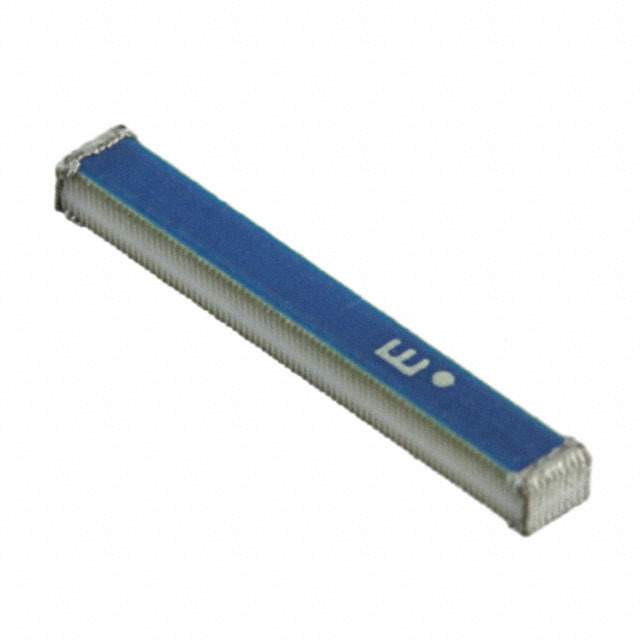

RFANT8010080A3T Real Image
Same model may have multiple batches, images only for reference.

RFANT8010080A3T

Part No RFANT8010080A3T
Manufacturer Walsin Technology Corporation
Catalog RF Antennas
Description 2.4GHZ CERAMIC CHIP ANTENNA
Datasheet
RFANT8010080A3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Walsin Technology Corporation
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 2dBi
Maximum Power Dissipation 3W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.031" (0.80mm)
Applications Bluetooth, WLAN
Win Source Part Number 112378-RFANT8010080A3T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian RFANT8010080A3T CAD Model

Description

The Walsin Technology Corporation RFANT8010080A3T chip antenna is a reliable and efficient component for your Bluetooth and WLAN applications.

  • Frequency Range: 2.4 GHz to 2.5 GHz
  • Gain: 2 dBi
  • Suitability: Perfect for use in a variety of circuits.
  • Popularity: Low-popularity component
  • Status: Active product with a balance supply and demand status.
