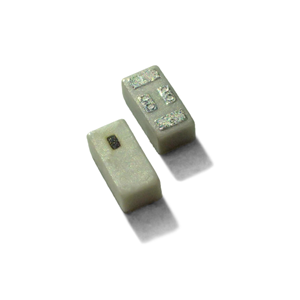

The RFBPF3225150A4T is a Band Pass Filter manufactured by Walsin Technology Corporation. It's a surface mount device designed for filtering specific frequency bands in RF applications, offering a compact solution for signal conditioning.

Applications:

• Wireless communication systems: Used in cellular networks (GSM, CDMA, LTE, 5G) to filter desired signals and reject unwanted interference.
• GPS receivers: Employed to isolate the GPS signal frequency for accurate positioning.
• Bluetooth devices: Integrated to filter out-of-band noise and improve signal clarity.
• Wi-Fi modules: Implemented to enhance signal quality and reduce interference from other wireless devices.
• IoT (Internet of Things) devices: Used to ensure reliable wireless communication in various IoT applications.

Features:

• Compact Size: Small form factor suitable for space-constrained applications.
• Surface Mount Technology (SMT): Designed for automated assembly and high-volume manufacturing.
• Band Pass Filtering: Allows a specific frequency band to pass through while attenuating frequencies outside the band.
• Low Insertion Loss: Minimizes signal attenuation within the passband.
• High Attenuation: Effectively suppresses unwanted signals and noise outside the passband.

Benefits:

• Improved Signal Quality: Filters out unwanted noise and interference, resulting in a cleaner signal.
• Enhanced Communication Range: Reduces interference, leading to improved wireless communication distance.
• Increased System Performance: Optimizes signal reception and transmission, enhancing overall system efficiency.
• Reduced Interference: Minimizes the impact of external signals on the desired frequency band.
• Compact Design: Enables integration into small devices and modules.

Technical Specifications:

While specific specifications can vary, typical parameters include center frequency, bandwidth, insertion loss, return loss, attenuation, impedance, and operating temperature range. Consult the manufacturer's datasheet for detailed specifications for the RFBPF3225150A4T filter.
