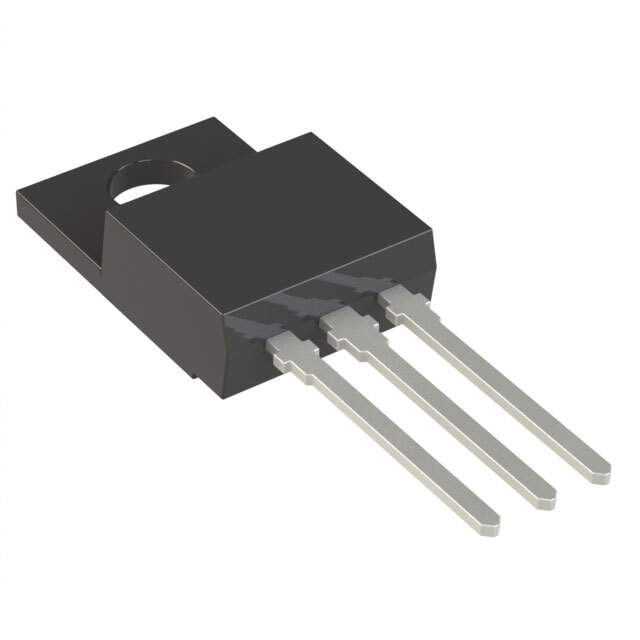

BTA204X-800E/L03Q Real Image1 BTA204X-800E/L03Q Real Image2
Same model may have multiple batches, images only for reference.
BTA204X-800E/L03Q Real Image1 BTA204X-800E/L03Q Real Image2
BTA204X-800E/L03Q Real Image1 BTA204X-800E/L03Q Real Image2
Same model may have multiple batches, images only for reference.

BTA204X-800E/L03Q

Part No BTA204X-800E/L03Q
Manufacturer WeEn Semiconductors
Catalog Triacs
Description TRIAC SENS GATE 800V 4A  /  TRIAC Logic - Sensitive Gate 800 V 4 A Through Hole TO-220F
Datasheet
BTA204X-800E/L03Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - TRIACs
Mfr WeEn Semiconductors
Package Tube
Triac Type Logic - Sensitive Gate
Voltage - Off State 800 V
Current - On State (It (RMS)) (Max) 4 A
Voltage - Gate Trigger (Vgt) (Max) 1 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 25A, 27A
Current - Gate Trigger (Igt) (Max) 10 mA
Current - Hold (Ih) (Max) 12 mA
Configuration Single
Temperature Range - Operating 125°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Supplier Device Package TO-220F
Base Product Number BTA204
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names 934068692127
Standard Package 600
Win Source Part Number 1126654-BTA204X-800E/L03Q
Ultra Librarian 3D Model Ultra Librarian BTA204X-800E/L03Q CAD Model

Description

The BTA204X-800E/L03Q is a single configuration, logic-sensitive gate triac designed for use in discrete semiconductor products.

  • Configuration: Single
  • Gate Type: Logic - Sensitive
  • Voltage (Max): 800 V
  • Current (Max): 4 A
  • Current Hold (Ih): 12 mA
  • Voltage Gate Trigger (Vgt): 1 V
  • Current Gate Trigger (Igt): 10 mA
  • Current On State (It (RMS)): 4 A
  • Non-Rep. Surge 50, 60 Hz (Itsm): 25A, 27A
  • Mounting Type: Through Hole
  • Package: TO-220-3 Full Pack, Isolated Tab
  • Supplier Package: TO-220F
  • Operating Temperature: 125°C (TJ)
  • Alternative Part: BTA204X-800EL03Q
