Same model may have multiple batches, images only for reference.

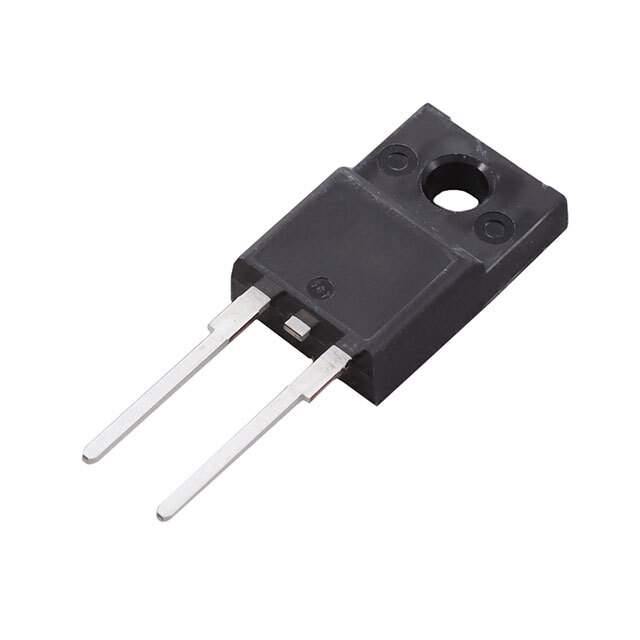

NXPSC06650X6Q Real Image
Same model may have multiple batches, images only for reference.

NXPSC06650X6Q

Part No NXPSC06650X6Q
Manufacturer WeEn Semiconductors
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 650V 6A TO220F  /  Diode Silicon Carbide Schottky 650 V 6A Through Hole TO-220F
Datasheet
NXPSC06650X6Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr WeEn Semiconductors
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 6 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 650 V
Capacitance @ Vr, F 190pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack, Isolated Tab
Supplier Device Package TO-220F
Operating Temperature - Junction 175°C (Max)
Base Product Number NXPSC
ECCN EAR99
HTSUS 8541.10.0080
Other Names 934072082127
Standard Package 1,000
Win Source Part Number 1111949-NXPSC06650X6Q
Ultra Librarian 3D Model Ultra Librarian NXPSC06650X6Q CAD Model

Description

The NXPSC06650X6Q is a discrete semiconductor product falling under the category of Diodes - Rectifiers - Single.

  • Diode Type: Silicon Carbide Schottky
  • Voltage - DC Reverse (Vr) (Max): 650 V
  • Current - Average Rectified (Io): 6A
  • Standard Package: 1,000
  • Mounting Type: Through Hole
  • ECCN: EAR99
  • Manufacturer: WeEn Semiconductors
