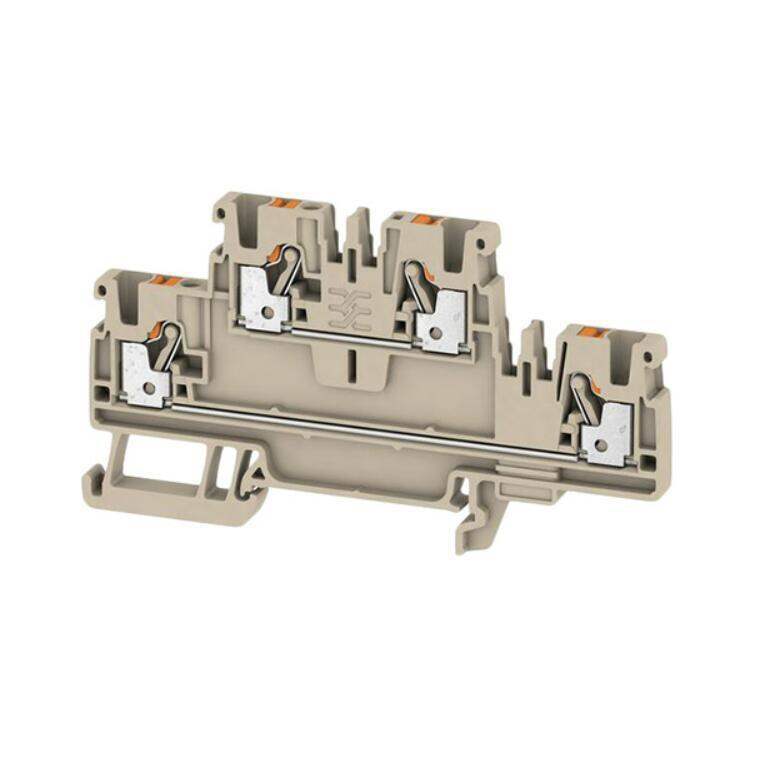

1547610000 Weidmüller
Same model may have multiple batches, images only for reference.

1547610000

Part No 1547610000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description FEED-THROUGH TERMINAL, PUSH IN,
Datasheet
1547610000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Series A
Package Box
Product Status Active
Type Feed Through
Number of Positions 4
Number of Levels 2
Win Source Part Number WS1204354-1547610000
Terminal - Width 5.1mm
Termination Style Push In
Current - IEC 24 A
Ultra Librarian 3D Model Ultra Librarian 1547610000 CAD Model

Description

Spring connection with PUSH IN Technology The innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum. Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types.
