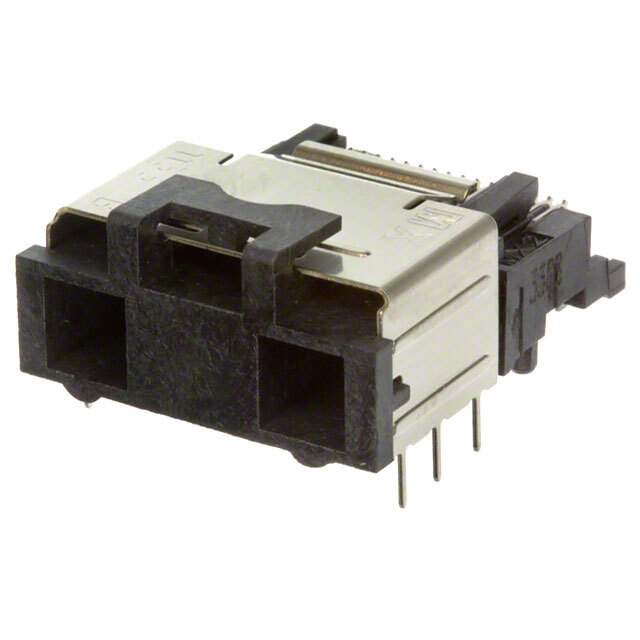

0757830140 Real Image
Same model may have multiple batches, images only for reference.

0757830140

Part No 0757830140
Manufacturer Molex, LLC
Catalog Pluggable Connectors
Description CONN MINI SAS RCP 36P SLD RA SMD / 36 Position SAS, Mini Receptacle Connector Solder Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors>Pluggable Connector Assemblies
Mfr Molex, LLC
Series iPass PCI Express 75783
Package Tape & Reel
Connector Style Receptacle
Connector Type SAS, Mini
Number of Positions 36
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 757830
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 125 pcs
Win Source Part Number 1381169-0757830140
Ultra Librarian 3D Model Ultra Librarian 0757830140 CAD Model

Description

The iPass PCI Express 75783 series is a 36-position pluggable connector assembly with a SAS, Mini connector type from Molex, LLC.

  • Connector Type: SAS, Mini
  • Positions: 36
  • Termination: Solder
  • Contact Finish: Gold
  • Mounting: Surface Mount, Right-Angle
  • Package: Tape & Reel
  • Standard Package: 125 pieces
  • REACH: Unaffected
  • Temperature Range: -40°C to 125°C
  • Voltage Rating: 600V
  • Base Product Number: 757830
