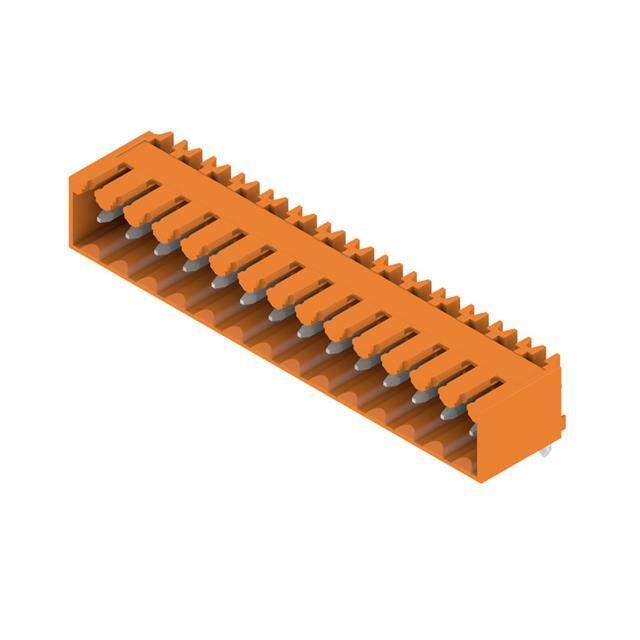

The Omnimate SL 1351863-1605190000 is a high-quality electronic component that is widely used in various applications.

• Manufacturer: Weidmüller
• Product Type: Connector, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
• Series: Omnimate SL
• Type: Header, Male Pins, Shrouded (4 Side)
• Number of Positions: 14
• Positions per Level: 14
• Number of Levels: 1
• Pitch: 0.138" (3.50mm)
• Header Orientation: 90°, Right Angle
• Termination Style: Solder
• Current - IEC: 17A
• Voltage - IEC: 320 V
• Current - UL: 10 A
• Voltage - UL: 300 V
• Color: Orange
• Contact Mating Finish: Tin
• Package: Bulk
• Contact Material: Copper Alloy
• Ingress Protection: IP10
• Housing Material: Polybutylene Terephthalate (PBT)
• Material Flammability Rating: UL94 V-0
• Standard Package: 50
• Mounting Type: Through Hole
• Insulation Height: 0.298" (7.57mm)
• Temperature Range - Operating: -50°C ~ 100°C
• Contact Tail Length: 0.126" (3.20mm)
