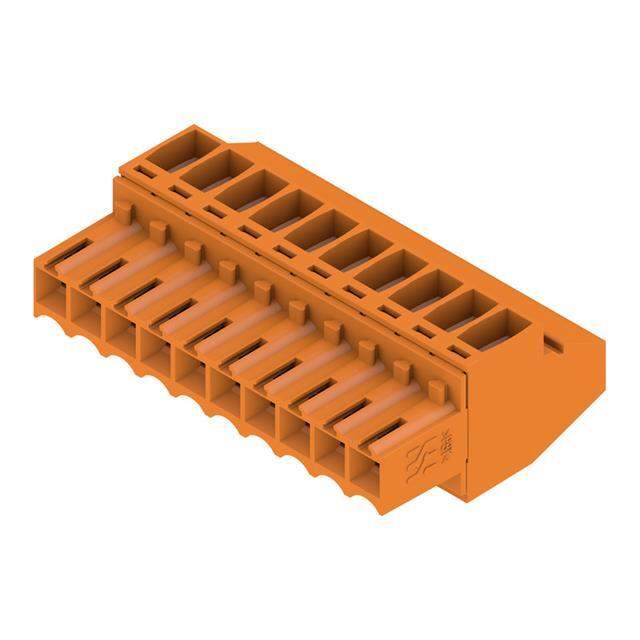

The Weidmüller Omnimate BL series plug, female sockets terminal block is a 10-position product with 10 positions per level and a single level. Omnimate BL series plug, Weidmüller.

• Positions: 10
• Positions Per Level: 10
• Number of Levels: 1
• Pitch: 0.138" (3.50mm)
• Wire Entry: 90° Plug
• Termination Style: Screw-Clamping Yoke (Tension Sleeve)
• Current Rating (IEC): 12A
• Current Rating (UL): 8A
• Voltage Rating (IEC): 320V
• Voltage Rating (UL): 300V
• Wire Gauge Range: 14-28 AWG
• Wire Gauge Range: 0.2-1.5mm2
• Color: Orange
• Contact Mating Finish: Tin
• Ingress Protection: IP20
• Housing Material: Polybutylene Terephthalate (PBT)
• Flammability Rating: UL94 V-0
• Packaging: Bulk
• Torque Screw: 0.2-0.25 Nm (1.7-2.2 Lb-In)
• Screw Size: M2
• Mounting Type: Free-Hanging (In-Line)
• Insulation Height: 0.884" (22.45mm)
• Temperature Range: -50°C ~ 100°C
