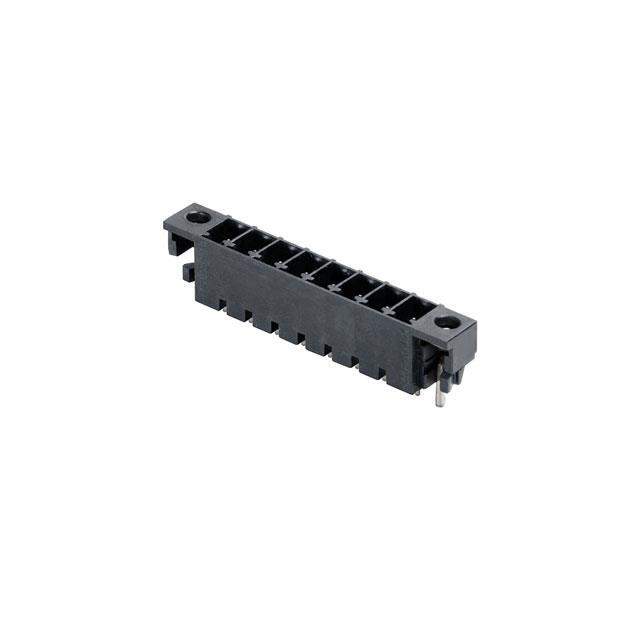

1863230000 Real Image
Same model may have multiple batches, images only for reference.

1863230000

Part No 1863230000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS VERT 3.81MM / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SC
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 17.5A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Color Black
Temperature Range - Operating -50°C ~ 120°C
Contact Mating Finish Tin
Features Mating Flange, Solder Retention
Material Flammability Rating UL94 V-0
Ingress Protection IP20
Contact Material Copper Alloy
Housing Material Liquid Crystal Polymer (LCP) , Glass Filled
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.362" (9.20mm)
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349138-1863230000
Ultra Librarian 3D Model Ultra Librarian 1863230000 CAD Model

Description

The 1349138-1863230000 is a header, male pins, shrouded (4 side) terminal block manufactured by Weidmüller.

  • Series: Omnimate SC
  • Number of Positions Per Level: 2
  • Number of Levels: 1
  • Pitch: 0.150" (3.81mm)
  • Current Rating (IEC): 17.5A
  • Current Rating (UL): 10A
  • Voltage Rating (IEC): 320V
  • Voltage Rating (UL): 300V
  • Color: black
  • Contact Mating Finish: tin
  • Features: mating flange, solder retention
  • Packaging: bulk
  • Mounting Type: through hole
  • Ingress Protection: IP20
  • Housing Material: liquid crystal polymer (LCP), glass filled
  • Material Flammability Rating: UL94 V-0
  • Insulation Height: 0.362" (9.20mm)
  • Contact Tail Length: 0.126" (3.20mm)
  • Operating Temperature: -50°C to 120°C
  • Product Category: connectors, interconnects - terminal blocks - headers, plugs, and sockets
