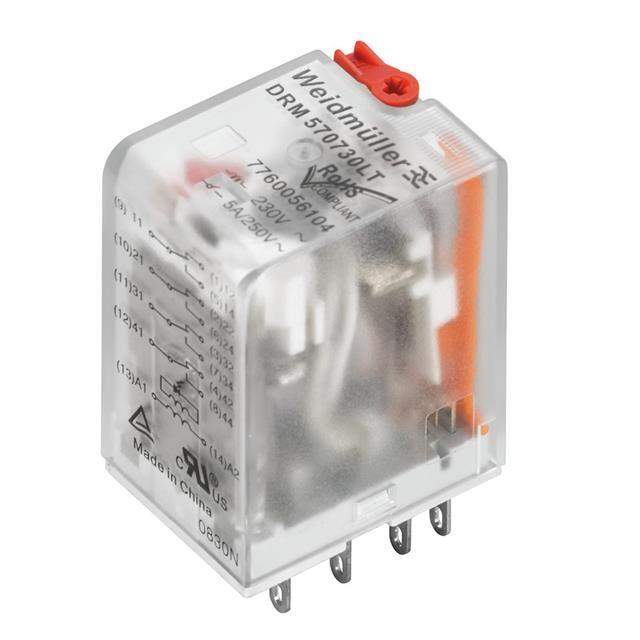

7760056075 Real Image
Same model may have multiple batches, images only for reference.

7760056075

Part No 7760056075
Manufacturer Weidmuller
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 115V
Datasheet
7760056075 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Weidmuller
Series DRM
Package Bulk
Product Status Active
Mounting Type Socketable
Coil Voltage 115VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Max
Coil Current 10.8 mA
Coil Type Non Latching
Features Lighted Indicator, Test Button
Termination Style Plug In
Must Operate Voltage 92 VAC
Must Release Voltage 34.5 VAC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 3.75 kOhms
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0075
Win Source Part Number 869282-7760056075
Ultra Librarian 3D Model Ultra Librarian 7760056075 CAD Model

Description

The 869282-7760056075 is a power relay from the DRM series by Weidmuller.

  • Configuration: DPDT (2 Form C)
  • Application: General-Purpose
  • Coil Voltage: 115VAC
  • Coil Resistance: 3.75 kOhms
  • Features: Lighted Indicator, Test Button
  • Contact Rating: 10A
  • Switching Voltage: 250VAC
  • Operating Temperature: -40°C to 55°C
  • Status: Active
