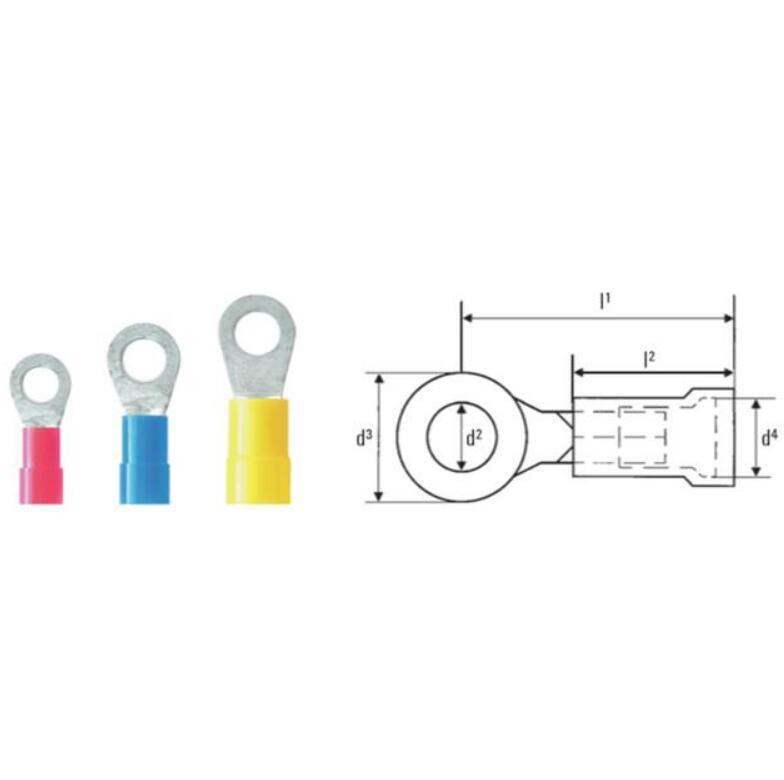

Same model may have multiple batches, images only for reference.
9200070000 Weidmüller

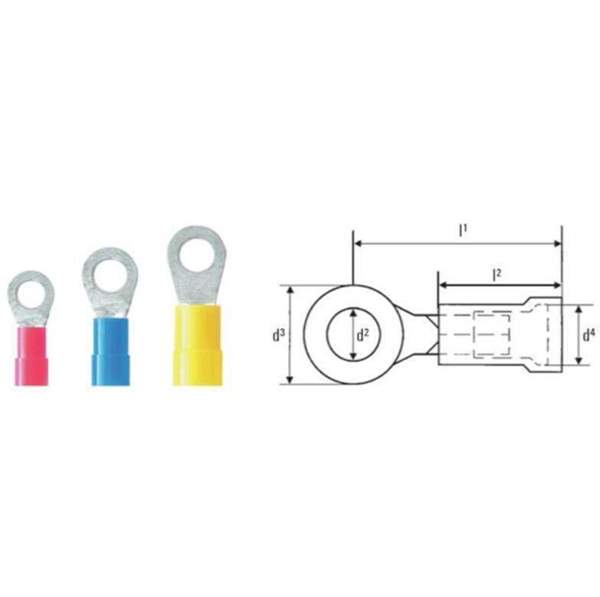

Same model may have multiple batches, images only for reference.

9200070000

Part No 9200070000
Manufacturer Weidmuller
Catalog Terminals
Description CONN RING CIRC #3 CRIMP
Datasheet
9200070000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204516-9200070000
Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminals Ring Connectors
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 3 Stud
Width - Outer Edges 0.217" (5.50mm)
Mounting Type Free Hanging (In-Line)
Insulation Insulated
Color Red
Material - Insulation Poly-Vinyl Chloride (PVC)
Ultra Librarian 3D Model Ultra Librarian 9200070000 CAD Model

Description

Wire end ferrules ensure the long-term quality of electrical connections. Another advantage is their usefulness during installation. The wide range of products embraces wire end ferrules with or without plastic collars and twin wire end ferrules in all the colours normally required by users.
