Same model may have multiple batches, images only for reference.

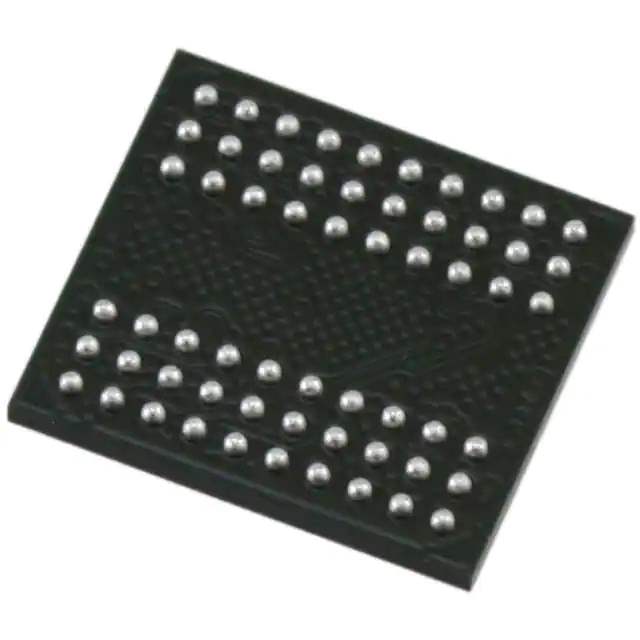

W949D6DBHX5I Real Image
Same model may have multiple batches, images only for reference.

W949D6DBHX5I

Part No W949D6DBHX5I
Manufacturer Winbond Electronics
Catalog Memory
Description IC DRAM 512MBIT PAR 60VFBGA
Datasheet
W949D6DBHX5I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Package Tray
Product Status Active
Programmable Not Verified
Memory Type Volatile
Memory Format DRAM
Technology SDRAM - Mobile LPDDR
Memory Size 512Mbit
Memory Organization 32M x 16
Memory Interface Parallel
Clock Frequency 200 MHz
Write Cycle Time - Word, Page 15ns
Access Time 5 ns
Voltage - Supply 1.7V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 60-TFBGA
Supplier Device Package 60-VFBGA (8x9)
Base Product Number W949D6
Standard Package 312 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0024
Win Source Part Number 943682-W949D6DBHX5I
Ultra Librarian 3D Model Ultra Librarian W949D6DBHX5I CAD Model

Description

The Winbond Electronics 943682-W949D6DBHX5I is a mobile LPDDR SDRAM memory module with a memory size of 512Mbit.

  • Clock Frequency: 200 MHz
  • Access Time: 5 ns
  • Memory Interface: parallel
  • Memory Format: DRAM
  • Designed for: use in integrated circuits (ICs)
  • Suitable for: mobile memory applications that require low power consumption and high data transfer rates
  • Voltage Supply Range: 1.7V to 1.95V
  • Package: surface mount
  • Package / Case: 60-TFBGA
  • Operating Temperature Range: -40°C to 85°C
  • Product Status: currently active and available for purchase
