Same model may have multiple batches, images only for reference.

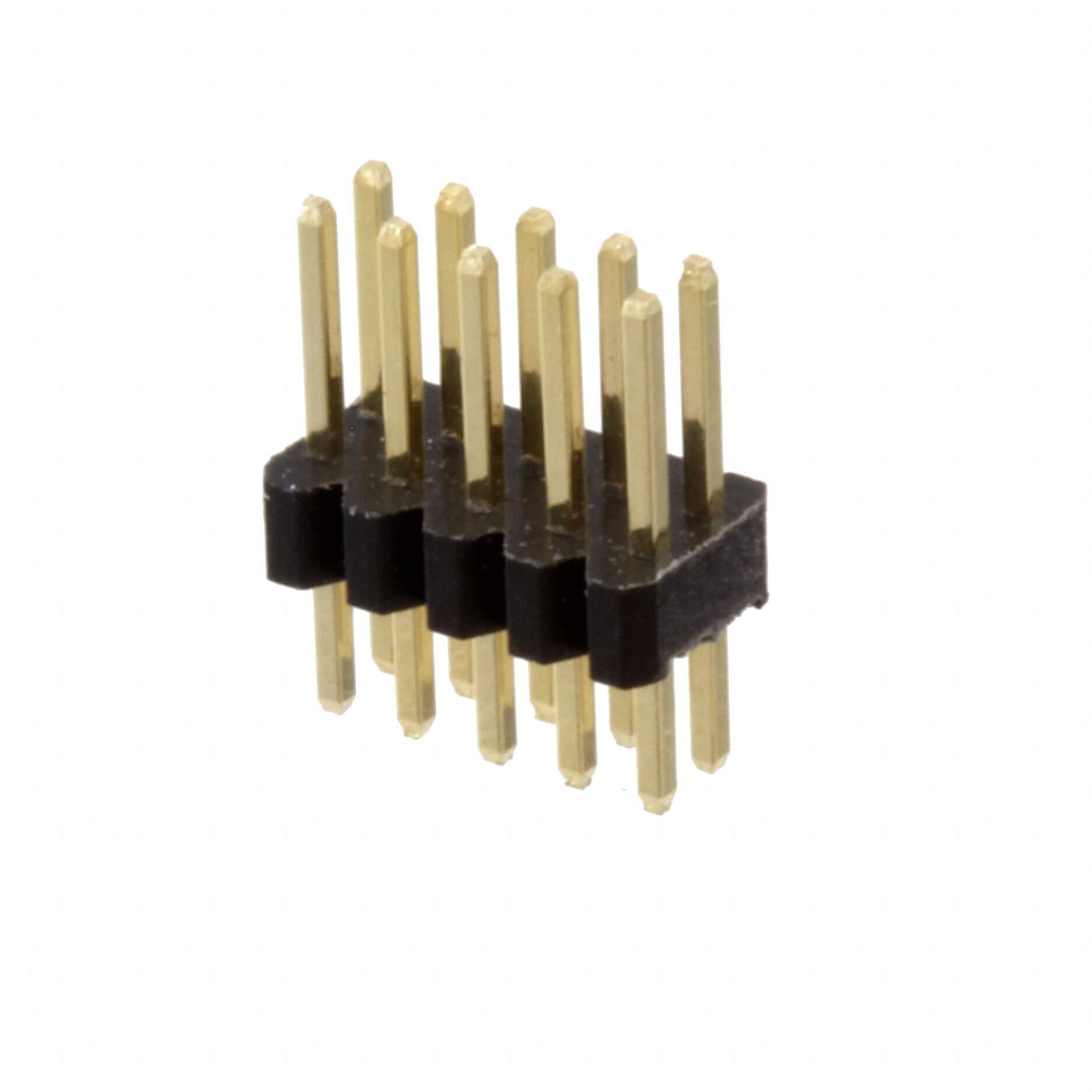

62201021121 Real Image
Same model may have multiple batches, images only for reference.

62201021121

Part No 62201021121
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 1.27MM / Connector Header Through Hole 10 position 0.050" (1.27mm)
Datasheet
62201021121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Wurth Electronics Inc
Series WR-PHD
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.150" (3.81mm)
Contact Length - Post 0.091" (2.30mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 50V
Standard Package 800 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856862-62201021121
Ultra Librarian 3D Model Ultra Librarian 62201021121 CAD Model

Description

The WR-PHD is a male pin header connector from Wurth Electronics Inc. Wurth Electronics Inc manufactures this.

  • Connector Type: Header, Male Pin
  • Connection Type: Board-to-Board or Cable
  • Pitch: 0.050" (1.27mm)
  • Number of Positions: 10
  • Mounting Type: Through Hole
  • Fastening Type: Push-Pull
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA6T) and Nylon 6T
  • Temperature Range: -40°C to 125°C
  • Flammability Rating: UL94 V-0
