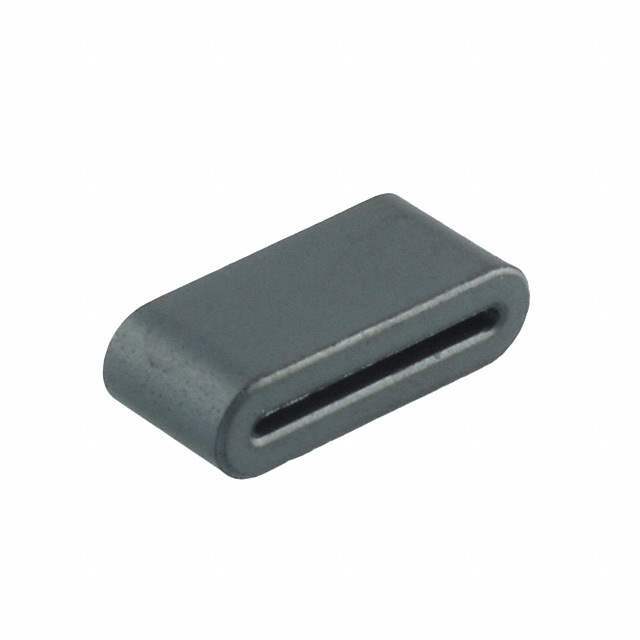

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1206311-7427221
Manufacturer Würth Elektronik
Category Filters-Cable Ferrites
Series WE-FLAT
Package Bulk
Product Status Active
Type Flat
Design Solid
Impedance @ Frequency 166Ohm @ 100MHz
Inner Dimension 0.551" W x 0.039" H (14.00mm x 1.00mm)
Outer Dimension 0.709" W x 0.197" H (18.00mm x 5.00mm)
Ultra Librarian 3D Model Ultra Librarian 7427221 CAD Model

Description

Solid Free Hanging Ferrite Core 166Ohm @ 100MHz ID 0.551" W x 0.039" H (14.00mm x 1.00mm) OD 0.709" W x 0.197" H (18.00mm x 5.00mm) Length 0.315" (8.00mm)
