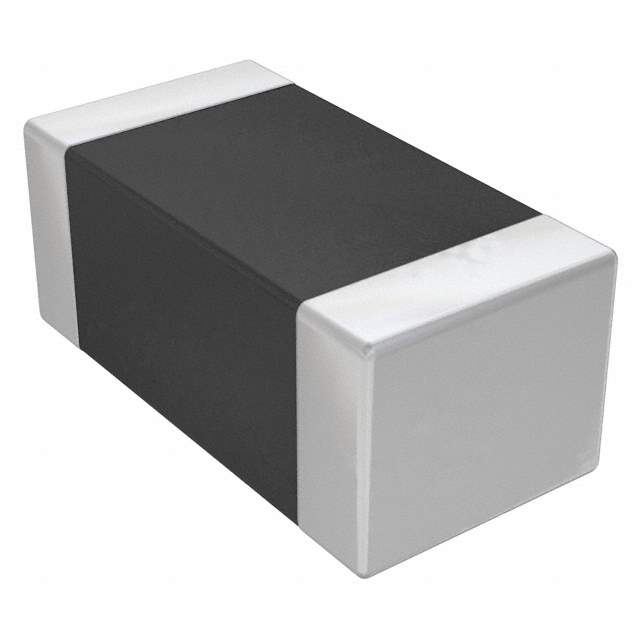

742792141 Real Image
Same model may have multiple batches, images only for reference.

742792141

Part No 742792141
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1K OHM 1206 1LN
Datasheet
742792141 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Wurth Electronics Inc
Series WE-CBF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 1 kOhms @ 100 MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 300mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857169-742792141
Ultra Librarian 3D Model Ultra Librarian 742792141 CAD Model

Description

The WE-CBF series is a range of ferrite beads and chips designed for signal line filtering applications.

  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Maximum Current Rating: 1A
  • Impedance @ 100 MHz: 1 kOhms
  • DC Resistance (DCR): 300mOhm Max
  • Mounting Type: Surface Mountable
  • Package: Tape & Reel
  • Standard Package Quantity: 3,000 pcs
  • Operating Temperature: -55°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Product Status: Active
  • Compliance: REACH
