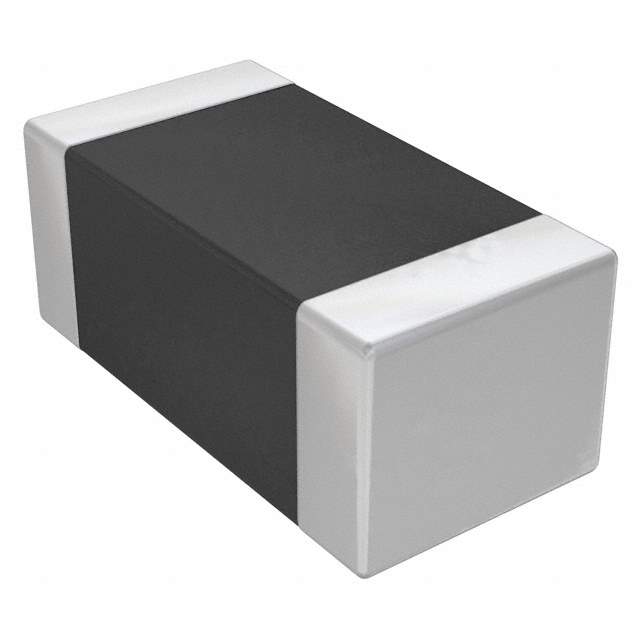

742792114 Real Image
Same model may have multiple batches, images only for reference.

742792114

Part No 742792114
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 50 OHM 1206 1LN
Datasheet
742792114 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Wurth Electronics Inc
Series WE-CBF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 50 Ohms @ 100 MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 25mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1125262-742792114
Ultra Librarian 3D Model Ultra Librarian 742792114 CAD Model

Description

The WE-CBF series is a range of ferrite beads and chips designed for signal line filtering applications by Wurth Electronics Inc.

  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Maximum Current Rating: 3A
  • Impedance: 50 Ohms @ 100 MHz
  • DC Resistance (DCR): 25mOhm Max
  • Mounting: surface mountable
  • Packaging: tape & reel
  • Standard Package Quantity: 3,000 pcs
  • Operating Temperature Range: -55°C to 125°C
  • Status: active
  • REACH: complies with regulations
