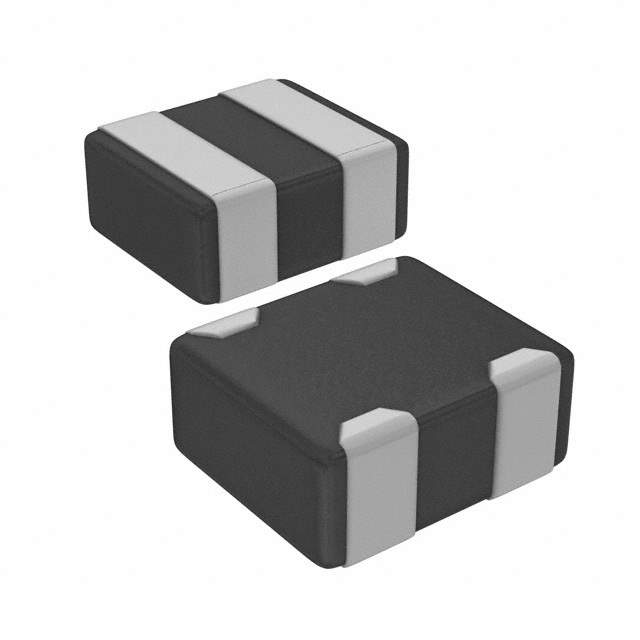

MZA1210D121 Real Image
Same model may have multiple batches, images only for reference.

MZA1210D121

Part No MZA1210D121
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 120 OHM 0504 2LN
Datasheet
MZA1210D121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 120 Ohm @ 100MHz
Current Rating (Max) 50mA
DC Resistance (DCR) (Max) 800 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.024" (0.60mm)
Dimension 0.049" L x 0.039" W (1.25mm x 1.00mm)
Win Source Part Number 208980-MZA1210D121
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MZA1210D121 CAD Model

Description

The TDK Corporation 208980-MZA1210D121 is an obsolete (EOL) signal line filter with a medium popularity and a balanced supply and demand status.

  • Current Rating (Max): 50mA
  • Mounting: SMD (SMT)
  • Height (Max): 0.024" (0.60mm)
  • Dimension: 0.049" L x 0.039" W (1.25mm x 1.00mm)
  • Lines: two
  • Impedance: 120 Ohm @ 100MHz
  • DC Resistance (DCR) (Max): 800 mOhm
  • Temperature Range: -55°C to 125°C
