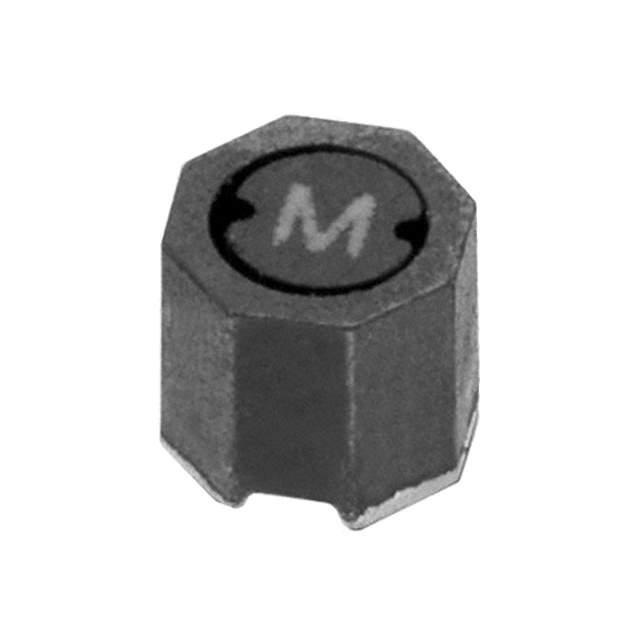

Same model may have multiple batches, images only for reference.

74402500030

Name: 74402500030
Brand: Wurth Electronics Inc
SKU: 857194
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74402500030
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 300NH 3.9A 18 MOHM SMD
Datasheet	74402500030 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	300 nH
Tolerance	±25%
Current Rating (Amps)	3.9 A
Current - Saturation (Isat)	5.7A
Shielding	Shielded
DC Resistance (DCR)	18mOhm Max
Frequency - Self Resonant	440MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2828
Size / Dimension	0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	550 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857194-74402500030
Ultra Librarian 3D Model	Ultra Librarian 74402500030 CAD Model

Alternative Products

Description

The 857194-74402500030 is a shielded drum core, wirewound inductor from the WE-TPC series by Wurth Electronics Inc.

Inductor Type: Fixed
Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
Inductance: 300 nH
Height: 0.118" (3.00mm)
Tolerance: ±25%
Current Rating: 3.9 A
DC Resistance (DCR): 18mOhm Max
Operating Temperature Range: -40°C to 125°C
