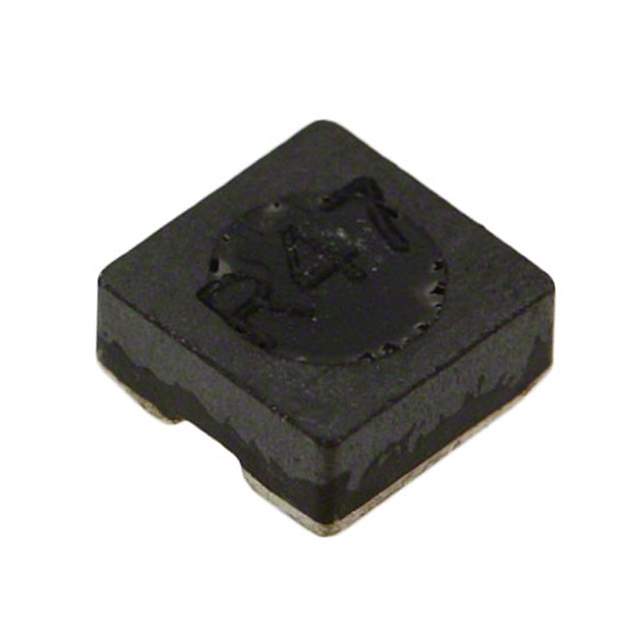

744031002 Real Image
Same model may have multiple batches, images only for reference.

744031002

Part No 744031002
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-TPC | FIXED IND 2.5UH 1.45A 58 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 2.5μH
Tolerance ±30%
Current Rating (Amps) 1.45A
Current - Saturation 1.25A
Shielding Shielded
DC Resistance (DCR) 58mOhm Max
Frequency - Self Resonant 120MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Supplier Device Package 3816
Parts Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129856-744031002
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 744031002 CAD Model

Description

The Wurth Electronics Inc. 1129856-744031002 is a shielded inductor used in a variety of applications, including power supplies and DC-DC converters.

  • Inductance: 2.5μH
  • Current Rating: 1.45A
  • DC Resistance: 58mOhm max
  • Self-Resonant Frequency: 120MHz
  • Package: 3816 package
  • Operating Temperature Range: -40°C to 125°C
