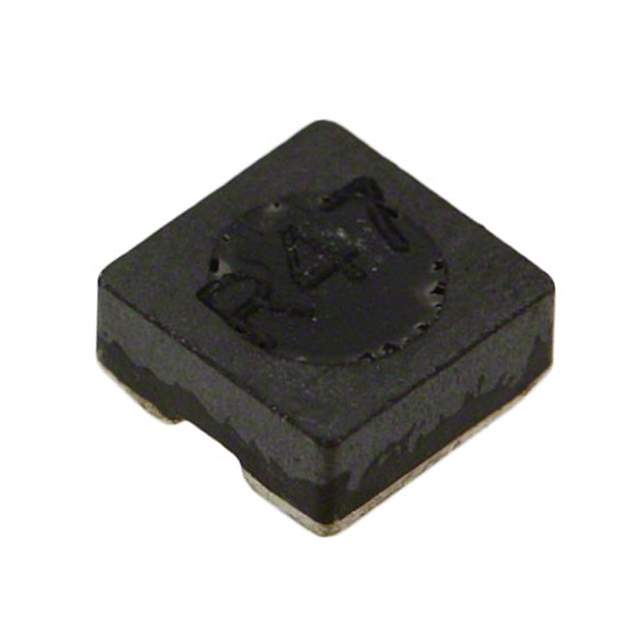

744031010 Real Image
Same model may have multiple batches, images only for reference.

744031010

Part No 744031010
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 1UH 2A 37 MOHM SMD
Datasheet
744031010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±30%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 37mOhm Max
Frequency - Self Resonant 144MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 3816
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857211-744031010
Ultra Librarian 3D Model Ultra Librarian 744031010 CAD Model

Description

The WE-TPC is a drum core, wirewound inductor that offers reliable performance in a compact package.

  • Size: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • Mounting: Surface Mount
  • Inductance: 1 µH
  • Maximum Seated Height: 0.071" (1.80mm)
  • DC Resistance (DCR): 37mOhm max
  • Current Rating: 2 A
  • Saturation Current (Isat): 1.6A
  • Operating Temperature Range: -40°C to 125°C
  • Core Material: Ferrite
  • Packaging: Tape & Reel
